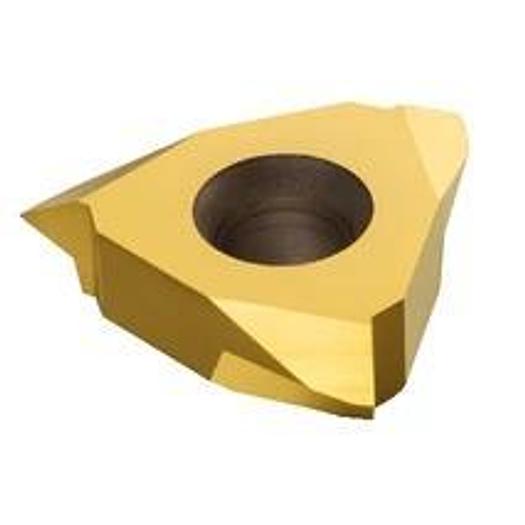

CoroMill 328 indexable insert for thread milling

CoroMill® 328 insert for thread milling

• Application Area: MU
• Coating Process Type: PVD
• fz max: 0.14000000000000001 mm
• fz min: 5.0000000000000003E-2 mm
• fz rec: 0.11 mm
• Number of gears per inch, max. (TPIX): 16
• Number of gears per inch, min. (TPIN): 7
• Thread type (THFT): VP60

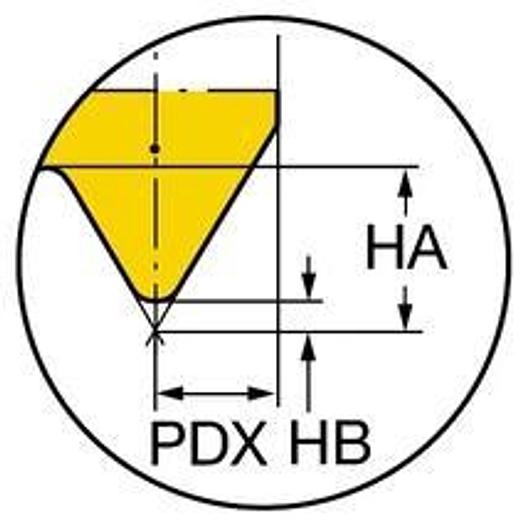

• Thread height, theoretical (HA): 2.31 mm
• Thread height difference (HB): 0.13 mm
• Thread cutting part, application (TTP): INT
• Thread pitch, max. (TPX): 3.5 mm
• Thread pitch, min.(TPN): 1.5 mm
• Manufacturer's ArtNo: 328R13-150 VM-TH 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Profile spacing X(PDX): 1.95 mm
• Cutting profile type (TPT): P
• Cutting edge height (S): 5.45 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 328 -13
• Cutting direction (HAND): R
• Grade: 1025
• chamfer (CF): 0.19 mm
• Substrate Type: WC
• TMC Order: 1~2~3
• vc max: 260~270~275 m/min
• vc min: 245~255~260 m/min
• vc rec: 250~260~265 m/min
• Material classification level 1(TMC1): K~M~P
• Number of teeth (NT): 1
• Thread type THF: VP60
• Cutting edge height: 5.45 mm
• All ISO application areas: P|M|K|N|S
