CoroMill 326

CoroMill 326

$120 (USD)

Location:Germany

Available quantity:99

orCall +1 (305) 951 -7825

Description

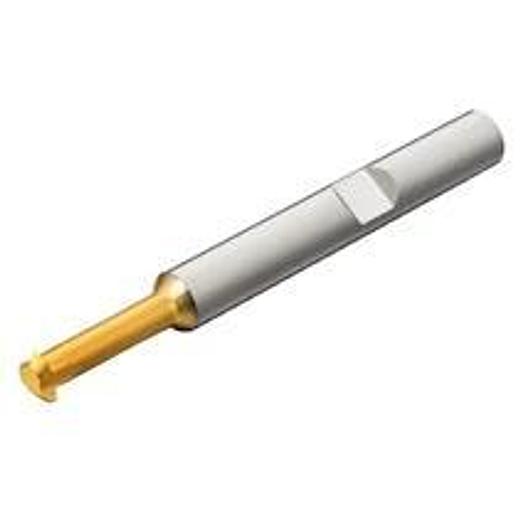

CoroMill® 326 solid carbide end mills for thread milling


  • Adapter interface machine direction (ADINTMS): Weldon (DIN6535-HB) -metric: 8
  • Number of effective cutting edges, circumferential (ZEFP): 3
  • Basic Classification (BSG): COROMANT
  • Coating Process Type: PVD
  • DCONMS: 8 mm
  • Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
  • Functional length (LF): 68 mm
  • Number of gears per inch, max. (TPIX): 50
  • Number of gears per inch, min. (TPIN): 16
  • Thread type (THFT): VP60

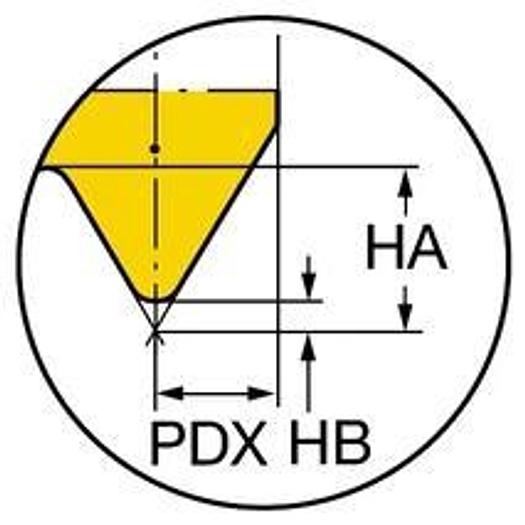

  • Thread height, theoretical (HA): 0.97 mm
  • Thread height difference (HB): 0.06 mm

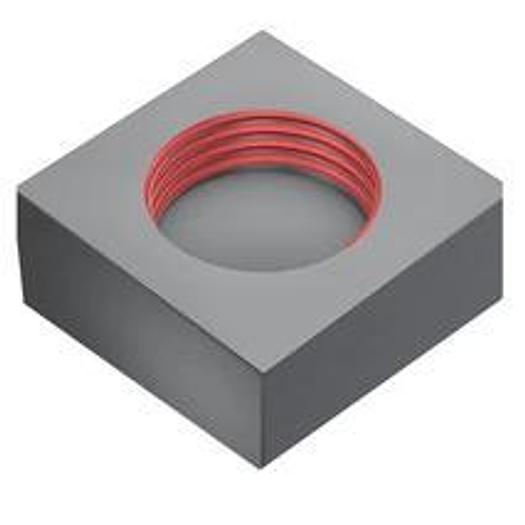

  • Thread cutting part, application (TTP): INT
  • Thread pitch, min.(TPN): 0.5 mm
  • Neck diameter (DN): 5.5 mm
  • Manufacturer item number: 326R08-B25050VM-TH 1025
  • Manufacturer: SANDVIK COROMANT
  • IC Code: 10050
  • ISO Cutting Tool Material: HC
  • Body diameter (BD): 5.5 mm
  • cantilever length (LPR): 68 mm
  • Coolant inlet (CNSC): 0: without coolant
  • Length Body Diameter 1(LB): 32 mm
  • Life Cycle Status (LCS): 20
  • Usable length (LU): 25 mm
  • Cutting diameter (DC): 7.8 mm
  • Cutting length, max. (APMX): 1.94 mm
  • Grade: 1025
  • Substrate Type: WC
  • Tolerance shaft diameter (TCDCON): h6
  • Usable length: 25 mm
  • Body diameter B: 5.5 mm
  • Cutting length: 1.94 mm
  • Cutting diameter: 7.8 mm


Specifications

ManufacturerSANDVIK COROMANT
Model326R08-B25050VM-TH1025
Year2024
ConditionNew
Serial Number520 326R08-B25050VM-TH 1025
Stock Number.
