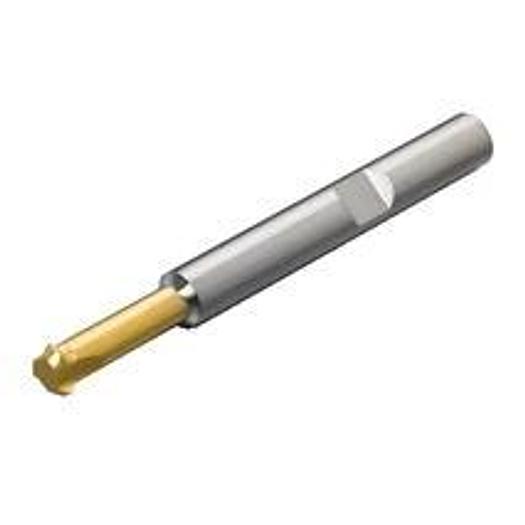

CoroMill 326

CoroMill® 326 solid carbide end mills for chamfering

• Adapter interface machine direction (ADINTMS): Weldon (DIN6535-HB) -metric: 8
• Number of effective cutting edges, circumferential (ZEFP): 3
• APMXPCF: 1.2 mm
• Coating Process Type: PVD
• DCONMS: 8 mm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Setting angle (KAPR): 45 deg

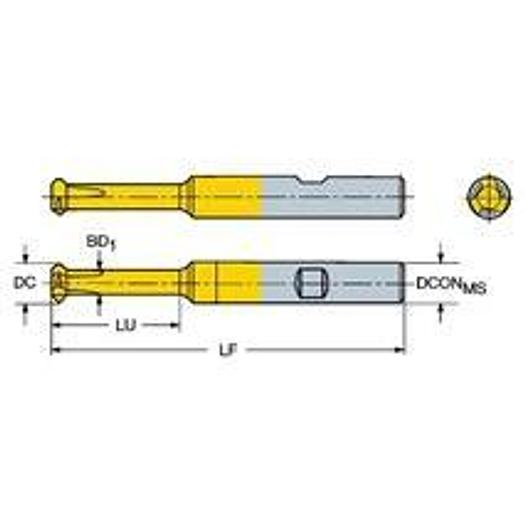

• Functional length (LF): 68 mm
• Neck diameter (DN): 5 mm
• Manufacturer's ArtNo: 326R08-B2502012-CH 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Body diameter (BD): 5 mm
• Coolant inlet (CNSC): 0: without coolant
• Length Body Diameter 1(LB): 25 mm
• Life Cycle Status (LCS): 20
• Usable length (LU): 25 mm
• Cutting diameter (DC): 5.5 mm
• Cutting diameter, max. (DCX): 7.8 mm
• Cutting length, max. (APMX2): 1.2 mm
• Grade: 1025
• Substrate Type: WC
• Mounting diameter: 8 mm
• Functional length L: 68 mm
• Number of effective cutting edges on the circumference: 3
• Grade: 1025
