CoroMill 216 Ball Nose End Mills - Metric Version

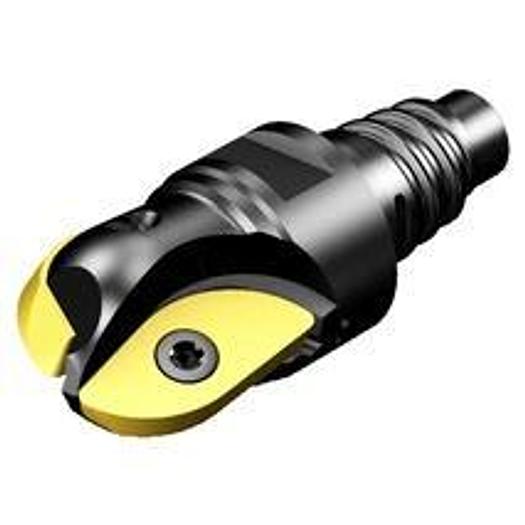

CoroMill® 216 ball nose end mills

• Adapter interface machine direction (ADINTMS): Coromant EH -metric - E25
• Number of cutting parts (CICT): 2
• Number of effective cutting edges, circumferential (ZEFP): 2
• DCONMS: 24.2 mm
• Torque (TQ): 5 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 12700 1/min

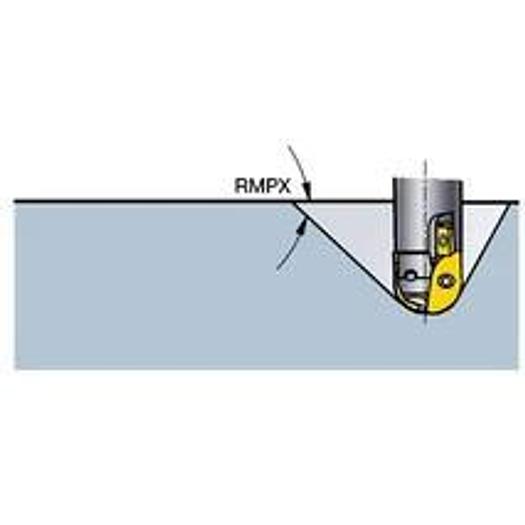

• Immersion angle, max.(RMPX): 85 deg
• Functional length (LF): 50 mm
• Manufacturer's ArtNo: R216-32EH25
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 32 mm
• Cutting length, max. (APMX): 28.6 mm
• Cutting direction (HAND): R
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 216 (R216-3206)
• Tool design (BMC): Steel
• Cutting diameter: 32 mm
• Mounting diameter: 24.2 mm
• Number of effective cutting edges on the circumference: 2
