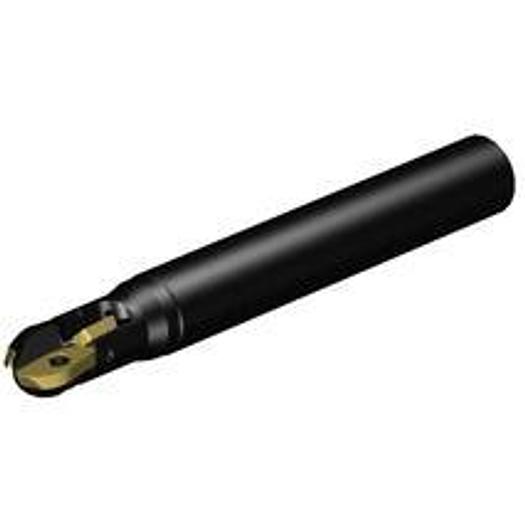

CoroMill 216 Ball Nose End Mills - Metric Version

CoroMill® 216 ball nose end mills

• Adapter interface machine direction(ADINTMS): Cylindrical shank without clamping features -metric: 32.0
• Number of cutting parts (CICT): 2
• Number of effective cutting edges, circumferential (ZEFP): 2
• DCONMS: 32 mm
• Torque (TQ): 5 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 19500 1/min
• Immersion depth, max.(AZ): 15 mm
• Immersion angle, max.(RMPX): 85 deg
• Functional length (LF): 250 mm
• Manufacturer's ArtNo: R216-30A32-070
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Body diameter (BD): 26.8 mm
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 1: axial concentric entry
• Length Body Diameter 1(LB): 55 mm
• Life Cycle Status (LCS): 20
• Usable length (LU): 60.4 mm
• Cutting diameter (DC): 30 mm
• Cutting length, max. (APMXEFW): 15 mm
• Cutting length, max. (APMXFFW): 26.9 mm
• Cutting direction (HAND): R
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 216 (R216-3006)
• Tool design (BMC): Steel
• Cutting diameter: 30 mm
• Usable length: 60.4 mm
• Mounting diameter: 32 mm
• Number of effective cutting edges on the circumference: 2
