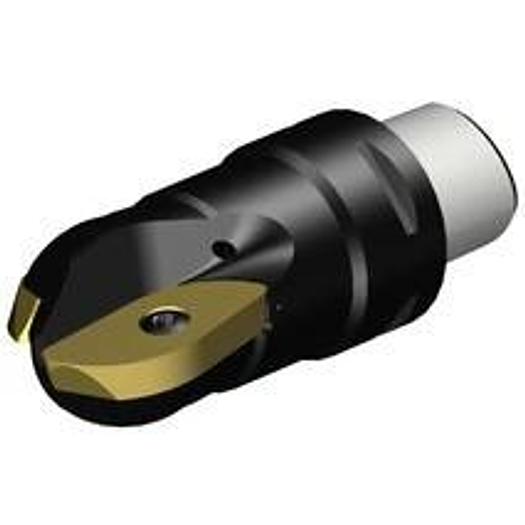

CoroMill 216 Ball Nose End Mills - Metric Version

CoroMill® 216 ball nose end mills

• Adapter interface machine direction (ADINTMS): Coromant Capto (bolt and segment clamping) -size C4
• Number of cutting parts (CICT): 2
• Number of effective cutting edges, circumferential (ZEFP): 2
• DCONMS: 40 mm
• Torque (TQ): 7.5 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 8000 1/min
• Immersion depth, max.(AZ): 20 mm
• Immersion angle, max.(RMPX): 85 deg
• Functional length (LF): 80 mm
• Manufacturer's ArtNo: R216-40C4-080
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Body diameter (BD): 37 mm
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 3: axial concentric and radial entry
• Length Body Diameter 1(LB): 58 mm
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 40 mm
• Cutting length, max. (APMXEFW): 20 mm
• Cutting length, max. (APMXFFW): 31.6 mm
• Cutting direction (HAND): R
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 216 (R216-4007)
• Tool design (BMC): Steel
• Cutting diameter: 40 mm
• Mounting diameter: 40 mm
• Number of effective cutting edges on the circumference: 2
