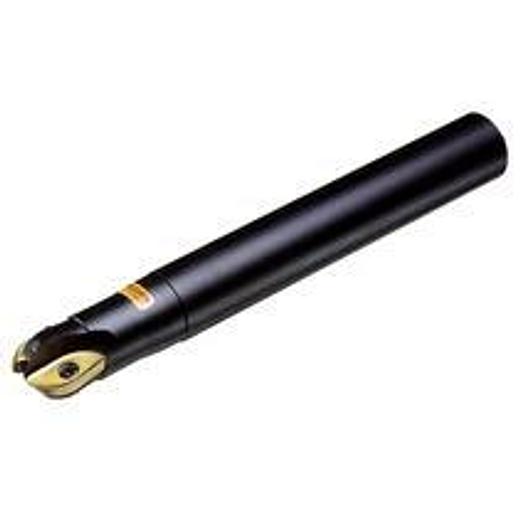

CoroMill 216 Ball Nose End Mills - Metric Version

CoroMill® 216 ball nose end mills

• Adapter interface machine direction(ADINTMS): Cylindrical shank without clamping features -metric: 16.00
• Number of cutting parts (CICT): 2
• Number of effective cutting edges, circumferential (ZEFP): 2
• DCONMS: 16 mm
• Torque (TQ): 0.6 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 15900 1/min
• Immersion depth, max.(AZ): 5 mm
• Immersion angle, max.(RMPX): 85 deg
• Functional length (LF): 160 mm
• Manufacturer's ArtNo: R216-10A16-050
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Body diameter (BD): 9.2 mm
• Coolant inlet (CNSC): 0: without coolant
• Length Body Diameter 1(LB): 19.8 mm
• Life Cycle Status (LCS): 20
• Usable length (LU): 22.1 mm
• Cutting diameter (DC): 10 mm
• Cutting length, max. (APMXEFW): 5 mm
• Cutting length, max. (APMXFFW): 8.6 mm
• Cutting direction (HAND): R
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 216 (R216-1002)
• Tool design (BMC): Steel
• Cutting diameter: 10 mm
• Usable length: 22.1 mm
• Mounting diameter: 16 mm
• Number of effective cutting edges on the circumference: 2
