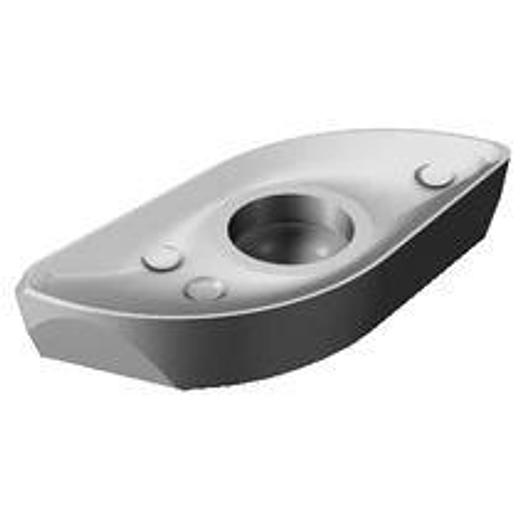

CoroMill 216 Milling Insert - Metric

CoroMill® 216 indexable insert for ball nose end mills

• Application Area: MU
• fz max: 0.20999999999999999 mm
• fz min: 8.0000000000000002E-2 mm
• fz rec: 0.14000000000000001 mm
• Main cutting edge radius (CEMR): 10 mm
• Manufacturer item number: R216-20 T3 MM H13A
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HW
• Life Cycle Status (LCS): 20
• Cutting length, limited (LE): 17.9 mm
• Cutting edge height (S): 3.96875 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 216 metric -20T3
• Cutting direction (HAND): R
• Grade: H13A
• Chip breaker, manufacturer designation (CBMD): MM
• Substrate Type: WC
• TMC Order: 1~2~3
• vc max: 1000~120~40 m/min
• vc min: 115~39~990 m/min
• vc rec: 1000~120~40 m/min
• Material classification level 1(TMC1): K~N~S
• Grade: H13A
• All ISO application areas: K|N|S
