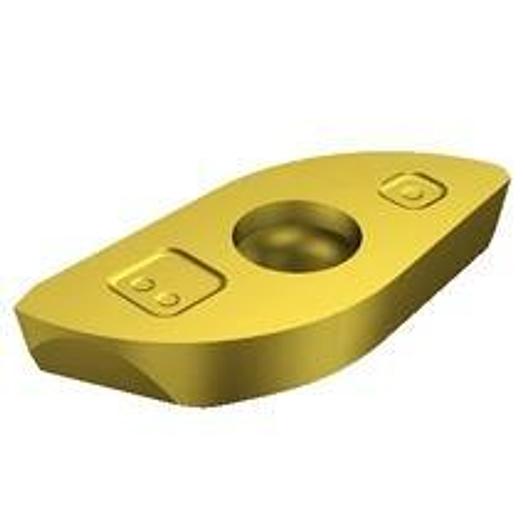

CoroMill 216 Milling Insert - Metric

CoroMill® 216 indexable insert for ball nose end mills

• Application Area: MU
• Coating Process Type: CVD
• fz max: 0.28000000000000003 mm
• fz min: 5.9999999999999998E-2 mm
• fz rec: 0.23999999999999999 mm
• Main cutting edge radius (CEMR): 15.72 mm
• Manufacturer's ArtNo: R216-32 06 EM 2040
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Cutting length, limited (LE): 28.6 mm
• Cutting edge height (S): 6.35 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 216 metric -3206
• Cutting direction (HAND): R
• Grade: 2040
• Chip breaker, manufacturer designation (CBMD): EM
• Substrate Type: WC
• TMC Order: 1~2~3
• vc max: 245~250~40 m/min
• vc min: 230~38 m/min
• vc rec: 230~235~39 m/min
• Material classification level 1 (TMC1): M~P~S
• Grade: 2040
• All ISO application areas: P|M|S
