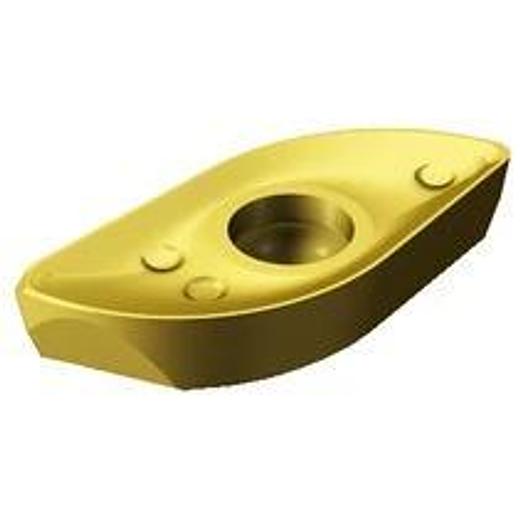

CoroMill 216 Milling Insert - Metric

CoroMill® 216 indexable insert for ball nose end mills

• Application Area: MU
• Coating Process Type: PVD
• fz max: 0.28000000000000003 mm
• fz min: 8.0000000000000002E-2 mm
• fz rec: 0.20999999999999999 mm
• Main cutting edge radius (CEMR): 15 mm
• Manufacturer's ArtNo: R216-30 06 MM 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Cutting length, limited (LE): 26.9 mm
• Cutting edge height (S): 6.35 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 216 metric -3006
• Cutting direction (HAND): R
• Grade: 1025
• Chip breaker, manufacturer designation (CBMD): MM
• Substrate Type: WC
• TMC Order: 1~2~3
• vc max: 260~270~45 m/min
• vc min: 245~255~40 m/min
• vc rec: 250~260~40 m/min
• Material classification level 1 (TMC1): M~P~S
• Grade: 1025
• All ISO application areas: P|M|N|S|H
