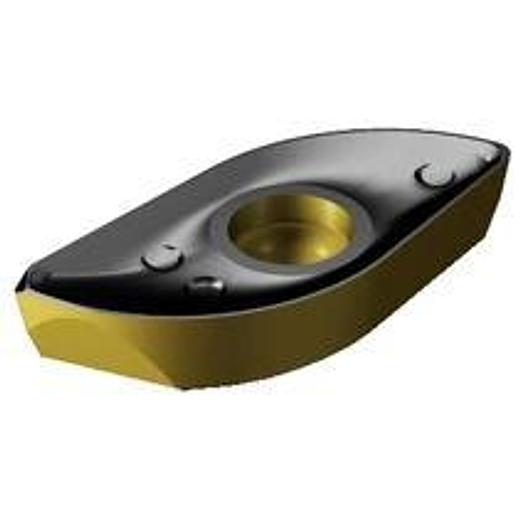

CoroMill 216 Milling Insert - Metric

CoroMill® 216 indexable insert for ball nose end mills

• Application Area: MU
• Coating Process Type: CVD
• fz max: 0.20999999999999999 mm
• fz min: 8.0000000000000002E-2 mm
• fz rec: 0.14000000000000001 mm
• Main cutting edge radius (CEMR): 8 mm
• Manufacturer's ArtNo: R216-16 03 MM 4220
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Cutting length, limited (LE): 14.4 mm
• Cutting edge height (S): 3.175 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 216 metric -1603
• Cutting direction (HAND): R
• Grade: 4220
• Chip breaker, manufacturer designation (CBMD): MM
• Substrate Type: WC
• TMC Order: 1~2
• vc max: 265~410 m/min
• vc min: 255~395 m/min
• vc rec: 260~405 m/min
• Material classification level 1(TMC1): K~P
• Grade: 4220
• All ISO application areas: P|K|H
