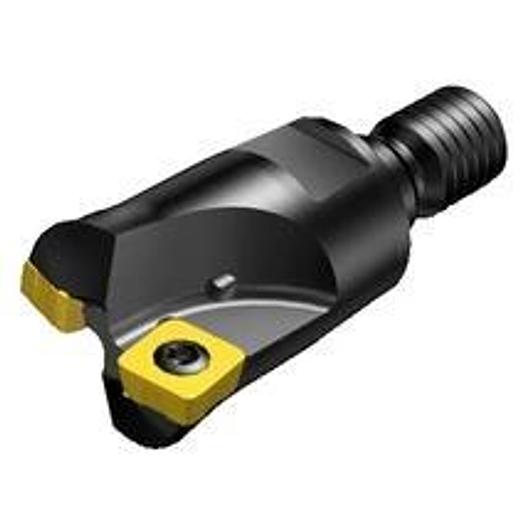

CoroMill 210 face and plunge milling cutters - metric version

CoroMill® 210 face milling cutter

• Adapter interface machine direction (ADINTMS): Threaded coupling (MSSC) -size M16
• Number of cutting parts (CICT): 2
• Number of effective cutting edges, circumferential (ZEFP): 2
• DCONMS: 28.8 mm
• Torque (TQ): 3 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 15000 1/min
• Setting angle (KAPR): 10 deg
• Immersion depth, max.(AZ): 1.8 mm
• Immersion angle, max.(RMPX): 8 deg
• Functional length (LF): 45 mm
• Manufacturer's ArtNo: R210-032T16-09M
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Body diameter (BD): 28.96 mm
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 1: axial concentric entry
• Length Body Diameter 1(LB): 45 mm
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 17.9 mm
• Cutting diameter, max. (DCX): 32 mm
• Cutting length, max. (APMXEFW): 8 mm
• Cutting length, max. (APMXFFW): 1.2 mm
• Cutting direction (HAND): R
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 210 -size 09 (R210-090412M/E-)
• Tool design (BMC): Steel
• Mounting diameter: 28.8 mm
• Cutting diameter: 17.9 mm
• Functional length L: 45 mm
• Number of effective cutting edges on the circumference: 2
