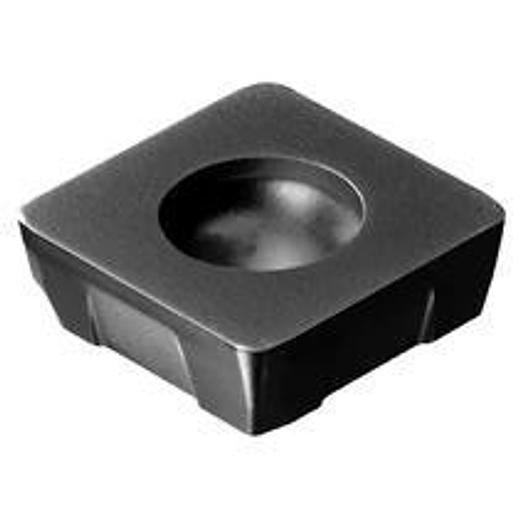

CoroMill 210 milling insert

CoroMill® 210 insert for milling

• Application Area: MU
• Coating Process Type: PVD
• Corner Radius Equivalent (REEQ): 2.5 mm
• Corner radius (RE): 1 mm
• Inscribed Circle (IC): 9.4 mm
• Setting angle, main cutting edge (KRINS): 10 deg
• fz max: 2.02 mm
• fz min: 0.40000000000000002 mm
• fz rec: 1.5 mm
• Manufacturer's Art No: R210-09 04 12M-PM S30T
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Cutting edge width (BS): 0.77 mm
• Cutting length, limited (LE): 6.2 mm
• Cutting length, max. (APMX): 1.2 mm
• Cutting edge height (S): 4 mm
• Cutting insert shape (SC): S
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 210 -0904 s=4
• Cutting direction (HAND): R
• Grade: S30T
• Chip breaker, manufacturer designation (CBMD): PM
• Substrate Type: WC
• TMC Order: 1
• vc max: 275 m/min
• vc min: 230 m/min
• vc rec: 245 m/min
• Material classification level 1 (TMC1): M
• Corner radius R: 1 mm
• Grade: S30T
• All ISO application areas: S
