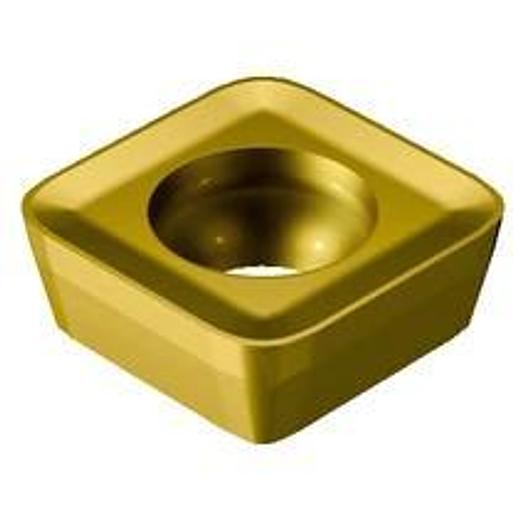

CoroMill 210 milling insert

CoroMill® 210 insert for milling

• Application Area: MU
• Coating Process Type: CVD
• Corner Radius Equivalent (REEQ): 2.5 mm
• Corner radius (RE): 1.4 mm
• Inscribed Circle (IC): 9.5 mm
• Setting angle, main cutting edge (KRINS): 10 deg
• fz max: 2.02 mm
• fz min: 0.40000000000000002 mm
• fz rec: 1.5 mm
• Manufacturer's ArtNo: R210-09 04 14E-MM 2040
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• face radius (BSR): 50 mm
• Cutting edge width (BS): 0.66 mm
• Cutting length, limited (LE): 5.77 mm
• Cutting length, max. (APMX): 1.2 mm
• Cutting edge height (S): 4.5 mm
• Cutting insert shape (SC): S
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 210 -0904 s=4.5
• Cutting direction (HAND): N
• Grade: 2040
• Chip breaker, manufacturer designation (CBMD): MM
• Substrate Type: WC
• TMC Order: 1~2~3
• vc max: 245~40 m/min
• vc min: 210~215~36 m/min
• vc rec: 220~225~37 m/min
• Material classification level 1 (TMC1): M~P~S
• Corner radius R: 1.4 mm
• Grade: 2040
• All ISO application areas: M|K
