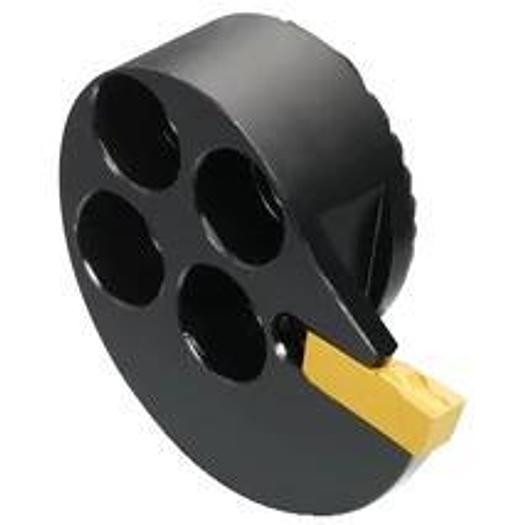

T-Max Q-Cut SL cutting heads

SANDVIK Q-CUT cutting head TYPE 570

• Adapter interface machine direction (ADINTMS): SL head (screw mounted) -size 16
• Bore diameter, min.(DMIN1): 25 mm
• DCONMS: 16 mm
• Functional width (WF): 16.5 mm
• Functional length (LF): 8 mm
• Manufacturer item number: RAG551.31-160808-20
• Manufacturer: SANDVIK COROMANT
• IC Code: 19160
• Body angle, workpiece side (BAWS): 90 deg
• Coolant pressure (CP): 10 bar
• Coolant outlet (CXSC): 2: radial exit
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 8 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 8.5 mm
• Part 2 of the identifiers for the cutting part interface (CUTIN: Q-Cut -size 20 (N151.3-200-20-4G)
• Adapter interface machine direction ADINTM: SL head (screw mounted) -size 16
• Part_2 of the identifiers for the cutting part interface_CUTIN: Q-Cut -size 20 (N151.3-200-20-4G)
• Cutting depth max CD: 8.5 mm
• Bore diameter min DMIN: 25 mm
