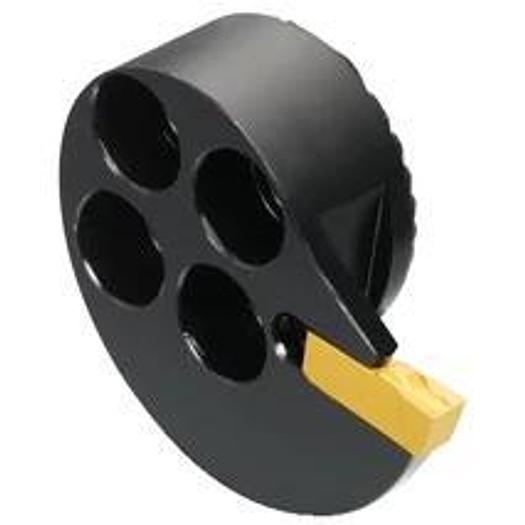

T-Max Q-Cut SL cutting heads

SANDVIK Q-CUT cutting head TYPE 570

• Adapter interface machine direction (ADINTMS): SL head (screw mounted) -size 25
• Bore diameter, min.(DMIN1): 32 mm
• DCONMS: 25 mm
• Functional width (WF): 19.15 mm
• Functional length (LF): 24.5 mm
• Manufacturer item number: RAG551.31-252506-40
• Manufacturer: SANDVIK COROMANT
• IC Code: 19160
• Body angle, workpiece side (BAWS): 90 deg
• Coolant pressure (CP): 10 bar
• Coolant outlet (CXSC): 2: radial exit
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 24.5 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 6.6 mm
• Part 2 of the identifiers for the cutting part interface (CUTIN: Q-Cut -size 40 (N151.3-400-40-4G)
• Adapter interface machine direction ADINTM: SL head (screw mounted) -size 25
• Part_2 of the identifiers for the cutting part interface_CUTIN: Q-Cut -size 40 (N151.3-400-40-4G)
• Cutting depth max CD: 6.6 mm
• Bore diameter min DMIN: 32 mm
