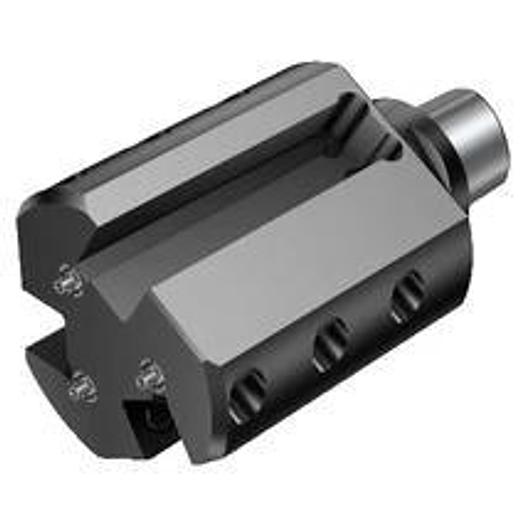

Mini-Revolver for Shank Tools

Coromant Capto® Mini-Turret for three rectangular shank tools

• Adapter interface machine direction (ADINTMS): Coromant Capto (bolt and segment clamping) -size C6
• CCONWS: 3
• DCONMS: 63 mm
• DFC: 44 mm
• Functional width (WF): 15.6 mm
• Functional height (HF): 19.05 mm
• Functional length (LF): 123 mm
• Manufacturer item number: C6-ASHR3-36125-12-A
• Manufacturer: SANDVIK COROMANT
• IC Code: 19000
• Body connection diameter, max. (DIX): 90 mm
• cantilever length (LPR): 123 mm
• Coolant pressure (CP): 80 bar
• Coolant outlet (CXSC): 5: axial inclined exit with nozzle, adjustable
• Coolant inlet (CNSC): 3: axial concentric and radial entry
• Life Cycle Status (LCS): 20
• Axial runout adjustment (ADINTWS): Rectangular shank -inch: (12) 3/4 x 3/4
• Tool design (BMC): Steel
• Adapter interface machine direction ADINTM: Coromant Capto (bolt and segment clamping) -size C6
• Mounting diameter: 63 mm
• Functional length L: 123 mm
• Axial runout setting ADINTW: Rectangular shank -inch: (12) 3/4 x 3/4
