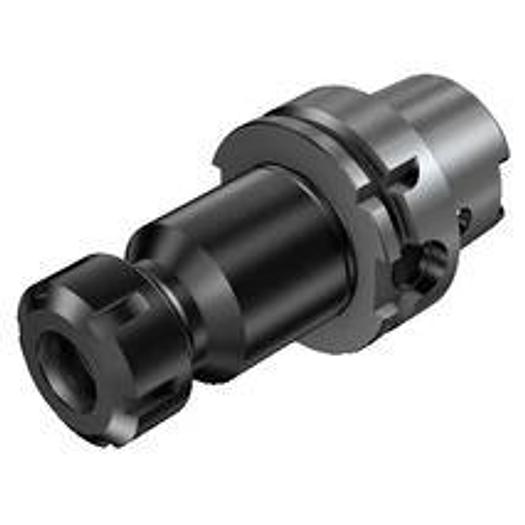

HSK-ER collet

HSK for ER collet chuck

• Adapter interface machine direction (ADINTMS): HSK -A -size 63
• Balanced version (BBD): 1
• DCONMS: 63 mm
• DCONWS: 17 mm
• DFCCSW: 16 mm
• DFCMCS: 48.01 mm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 20500 1/min
• Functional length (LF): 89.4 mm
• Manufacturer's ArtNo: 392.41014-63 16 100
• Manufacturer: SANDVIK COROMANT
• IC Code: 19000
• Body diameter (BD1): 28 mm
• Body diameter (BD2): 63 mm
• Coolant pressure (CP): 80 bar
• Coolant outlet (CXSC): 1: axial concentric exit
• Coolant inlet (CNSC): 1: axial concentric entry
• Length Body Diameter 1(LB1): 71.05 mm
• Length Body Diameter 1(LB2): 100 mm
• Life Cycle Status (LCS): 20
• Axial runout adjustment (ADINTWS): ER collet (DIN6499-B) -ER16
• Standard Document (STDLET): A
• Standard number(STDNO): ISO12164-1
• Tool design (BMC): Steel
• Adapter interface machine direction ADINTM: HSK -A -size 63
• Axial runout adjustment ADINTW: ER collet (DIN6499-B) -ER16
• Mounting diameter: 63 mm
• Length Body Diameter 1 L: 71.05 mm
