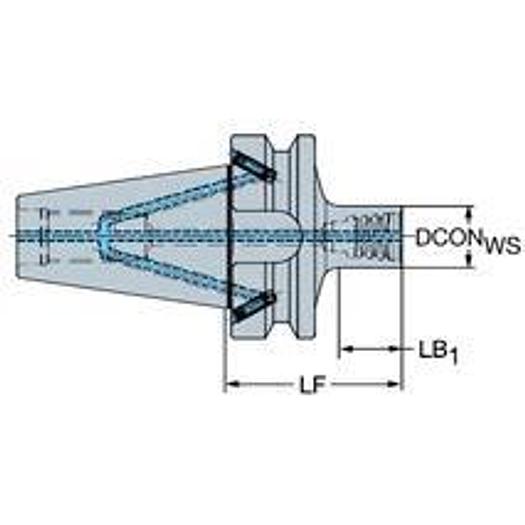

BIG-PLUS MAS-BT adapter to Coromant EH

BIG-PLUS MAS-BT adapter with Coromant EH

• Adapter interface machine direction (ADINTMS): BIG+/MAS-BT403 -AD central coolant - BT30
• Tightening bolt thread size (CRKS): M12
• Balanced version (BBD): 1
• DCONWS: 19.2 mm
• DFC: 31.75 mm
• Torque (TQ): 50 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 25000 1/min
• Functional length (LF): 47 mm
• Manufacturer's ArtNo: EH-BB30-20-047
• Manufacturer: SANDVIK COROMANT
• IC Code: 19000
• Body diameter (BD1): 19.2 mm
• Body diameter (BD2): 46 mm
• Coolant pressure (CP): 80 bar
• Coolant outlet (CXSC): 1: axial concentric exit
• Coolant inlet (CNSC): 1: axial concentric entry
• Length Body Diameter 1(LB1): 19.4 mm
• Length Body Diameter 1(LB2): 47 mm
• Life Cycle Status (LCS): 20
• Axial runout setting (ADINTWS): Coromant EH -metric - E20
• Tool design (BMC): Steel
• Axial runout setting ADINTW: Coromant EH -metric - E20
• Adapter interface machine direction ADINTM: BIG+/MAS-BT403 -AD central coolant - BT30
• Functional length L: 47 mm
