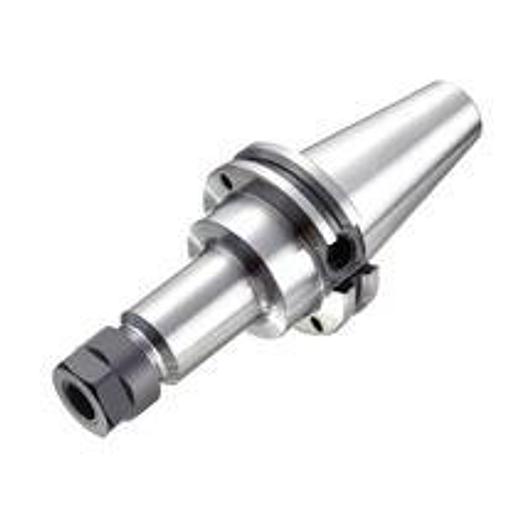

Collet Chuck - Inch Version
Collet Chuck - Inch Version
$270 (USD)
Location:Germany
Available quantity:99
orCall +1 (305) 951 -7825
Description
- Adapter interface machine direction (ADINTMS): CAT-V -AD/B central/flange coolant - CAT-V40
- Retaining bolt thread size (CRKS): 5/8"-11
- DCONWS: 21 mm
- DFCCSW: 20 mm
- DFCMCS: 44.45 mm
- Speed, max. (-81, -82: Maximum speed)(RPMX): 18000 1/min
- Functional length (LF): 89.41 mm
- Manufacturer's ArtNo: AA3B14-40 20 105
- Manufacturer: SANDVIK COROMANT
- IC Code: 19000
- Body diameter (BD1): 34.04 mm
- Body diameter (BD2): 44.4 mm
- Body diameter (BD3): 63.55 mm
- Coolant pressure (CP): 80 bar
- Coolant outlet (CXSC): 1: axial concentric exit
- Coolant inlet (CNSC): 7: decentral over flange and axial
- Length Body Diameter 1(LB1): 69.6 mm
- Length Body Diameter 1(LB2): 85.6 mm
- LB3: 104.65 mm
- Life Cycle Status (LCS): 20
- Axial runout adjustment (ADINTWS): ER collet (DIN6499-B) -ER20
- Tool design (BMC): Steel
- Adapter interface machine direction ADINTM: CAT-V -AD/B central/flange coolant - CAT-V40
- Axial runout adjustment ADINTW: ER collet (DIN6499-B) -ER20
- Length Body Diameter 1 L: 69.6 mm
Specifications
| Manufacturer | SANDVIK COROMANT |
| Model | AA3B14-4020105 |
| Year | 2024 |
| Condition | New |
| Serial Number | 520 AA3B14-40 20 105 |
| Stock Number | . |
