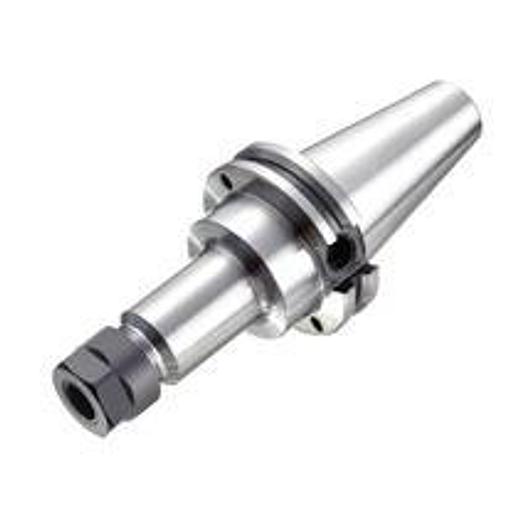

Collet Chuck - Inch Version

CAT-V for ER collet chucks

• Adapter interface machine direction (ADINTMS): CAT-V -AD/B central/flange coolant - CAT-V40
• Retaining bolt thread size (CRKS): 5/8"-11
• DCONWS: 17 mm
• DFCCSW: 16 mm
• DFCMCS: 44.45 mm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 18000 1/min
• Functional length (LF): 91.1 mm
• Manufacturer's ArtNo: AA3B14-40 16 105
• Manufacturer: SANDVIK COROMANT
• IC Code: 19000
• Body diameter (BD1): 27.74 mm
• Body diameter (BD2): 44.4 mm
• Body diameter (BD3): 63.55 mm
• Coolant pressure (CP): 80 bar
• Coolant outlet (CXSC): 1: axial concentric exit
• Coolant inlet (CNSC): 7: decentral over flange and axial
• Length Body Diameter 1(LB1): 69.6 mm
• Length Body Diameter 1(LB2): 85.6 mm
• LB3: 104.65 mm
• Life Cycle Status (LCS): 20
• Axial runout adjustment (ADINTWS): ER collet (DIN6499-B) -ER16
• Tool design (BMC): Steel
• Adapter interface machine direction ADINTM: CAT-V -AD/B central/flange coolant - CAT-V40
• Axial runout adjustment ADINTW: ER collet (DIN6499-B) -ER16
• Length Body Diameter 1 L: 69.6 mm
