Collet Chuck - Inch Version

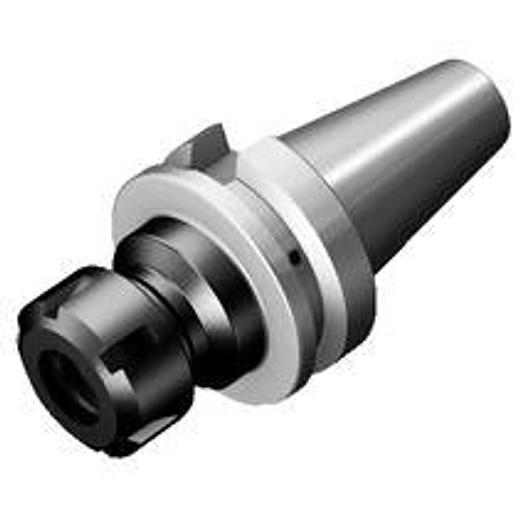

BIG-PLUS CAT-V on ER collet chuck

• Adapter interface machine direction (ADINTMS): BIG+/CAT-V -AD/B central/flange coolant - CAT-V40
• Retaining bolt thread size (CRKS): 5/8"-11
• Balanced version (BBD): 1
• DCONWS: 41 mm
• DFCCSW: 40 mm
• DFCMCS: 44.45 mm
• Functional length (LF): 60 mm
• Manufacturer item number: A392.54514-4040075
• Manufacturer: SANDVIK COROMANT
• IC Code: 19000
• Body diameter (BD1): 63 mm
• Body diameter (BD2): 63.5 mm
• Coolant pressure (CP): 80 bar
• Coolant outlet (CXSC): 1: axial concentric exit
• Coolant inlet (CNSC): 7: decentral over flange and axial
• Length Body Diameter 1(LB1): 55.9 mm
• Length Body Diameter 1(LB2): 75 mm
• Life Cycle Status (LCS): 20
• Axial runout adjustment (ADINTWS): ER collet (DIN6499-B) -ER40
• Tool design (BMC): Steel
• Adapter interface machine direction ADINTM: BIG+/CAT-V -AD/B central/flange coolant - CAT-V40
• Axial runout adjustment ADINTW: ER collet (DIN6499-B) -ER40
• Length Body Diameter 1 L: 55.9 mm
