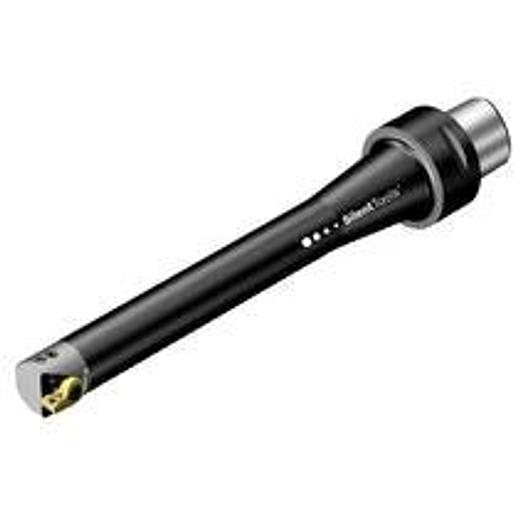

CoroBore® 825 fine boring tool

CoroBore® 825 fine boring tool

• Adapter interface machine direction (ADINTMS): Coromant Capto (bolt and segment clamping) -size C8
• Number of cutting parts (CICT): 1
• DCONMS: 80 mm
• Torque (TQ): 0.9 Nm
• Adjustment dimension, max. (ADJLX): 9 mm
• Setting angle (KAPR): 92 deg
• Functional length (LF): 500 mm
• Manufacturer's article number: 825D-87TC11U-C8S
• Manufacturer: SANDVIK COROMANT
• IC Code: 19160
• Body diameter (BD): 63 mm
• Coolant pressure (CP): 70 bar
• Coolant inlet (CNSC): 3: axial concentric and radial entry
• Length Body Diameter 1(LB): 414 mm
• Life Cycle Status (LCS): 20
• Cutting diameter, max. (DCX): 87 mm
• Cutting diameter, min.(DCN): 69 mm
• Standard number(STDNO): ISO26623-1
• Part 2 of the identifiers for the cutting part interface (CUTIN: TCMT 110304 (RE<0.4)
• Tool design (BMC): Steel and aluminium
• Adapter interface machine direction ADINTM: Coromant Capto (bolt and segment clamping) -size C8
• Mounting diameter: 80 mm
• Functional length L: 500 mm
• Cutting diameter min: 69 mm
