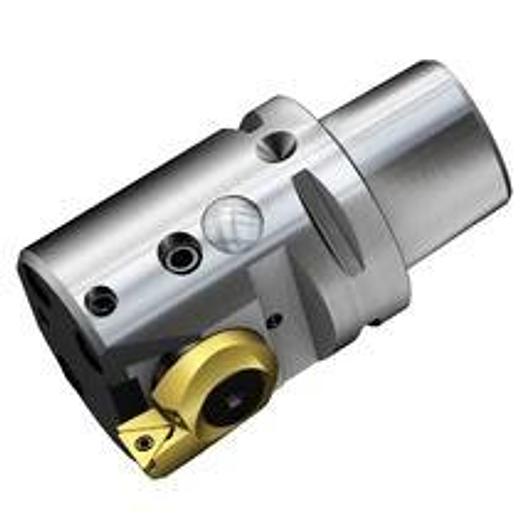

CoroBore® 826 fine boring tool

CoroBore® 826 fine boring tool

• Adapter interface machine direction (ADINTMS): Coromant Capto (bolt and segment clamping) -size C4
• Number of cutting parts (CICT): 1
• DCONMS: 40 mm
• Torque(TQ): 0.8 Nm
• Einstellmaß, max.(ADJLX): 0.55 mm
• Setting store(KAPR): 92 deg
• Functional length (LF): 56 mm
• HerstArtNr: 826-45TC09-C4HP
• Manufacturer: SANDVIK COROMANT
• IC Code: 80740
• Body diameter (BD): 40 mm
• Coolant pressure (CP): 70 bar
• Coolant inlet (CNSC): 3: axial concentric and radial entry
• Length Body Diameter 1(LB): 56 mm
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 45 mm
• Schneidendurchmesser, max.(DCX): 45.55 mm
• Cutting diameter, min.(DCN): 44.45 mm
• Standardnummer(STDNO): ISO26623-1
• Part 2 of the identifiers for the cutting part interface (CUTIN: TCMT 090204 (RE<0.4)
• Tool design (BMC): Steel
• Mounting diameter: 40 mm
• Functional length L: 56 mm
• Identification of cutting part interface CUTIN: TCMT 090204 (RE<0.4)
• Tool design BM: Steel
