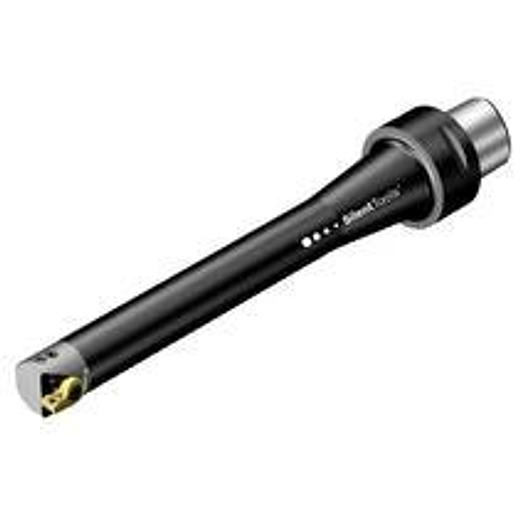

CoroBore® 825 fine boring tool

CoroBore® 825 fine boring tool

• Adapter interface machine direction (ADINTMS): Coromant Capto (bolt and segment clamping) -size C5
• Number of cutting parts (CICT): 1
• DCONMS: 50 mm
• Torque (TQ): 0.8 Nm
• Adjustment dimension, max. (ADJLX): 6 mm
• Setting angle (KAPR): 92 deg
• Functional length (LF): 336 mm
• Manufacturer's article number: 825D-56TC09U-C5L
• Manufacturer: SANDVIK COROMANT
• IC Code: 19160
• Body diameter (BD): 40 mm
• Coolant pressure (CP): 70 bar
• Coolant inlet (CNSC): 3: axial concentric and radial entry
• Length Body Diameter 1(LB): 264 mm
• Life Cycle Status (LCS): 20
• Cutting diameter, max. (DCX): 56 mm
• Cutting diameter, min.(DCN): 44 mm
• Standard number(STDNO): ISO26623-1
• Part 2 of the identifiers for the cutting part interface (CUTIN: TCMT 090204 (RE<0.4)
• Tool design (BMC): Steel and aluminium
• Adapter interface machine direction ADINTM: Coromant Capto (bolt and segment clamping) -size C5
• Mounting diameter: 50 mm
• Functional length L: 336 mm
• Cutting diameter min: 44 mm
