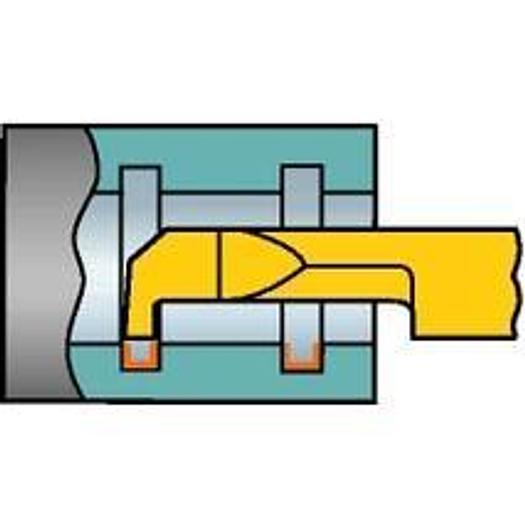

Processing type: Grooving

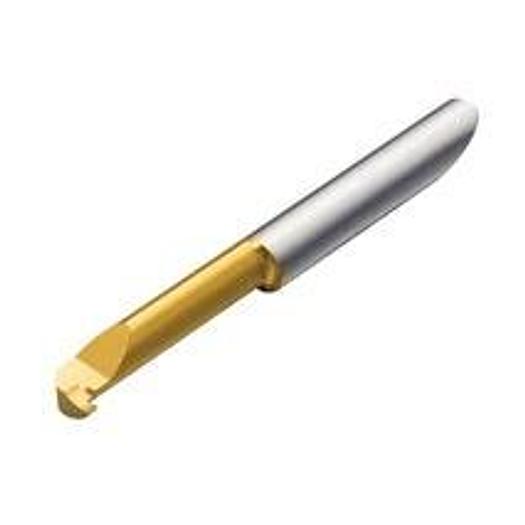

CoroTurn® XS solid carbide tool for grooving

• Adapter interface machine direction (ADINTMS): CoroTurn XS -metric: 5
• Bore diameter, min.(DMIN1): 5.2 mm
• Coating Process Type: PVD
• DCONMS: 5 mm
• Corner chamfer width, left (CHWL): 0.04 mm
• Corner chamfer width, right (CHWR): 0.04 mm
• Functional width (WF): 2.45 mm
• Functional length (LF): 52.25 mm
• Base body width (WB): 3.75 mm
• Manufacturer item number: CXS-05G200-5230R 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 33 mm
• Usable length (LU): 30 mm
• Upper cutting width tolerance (CWTOLU): 0.05 mm
• Cutting direction (HAND): R
• Cutting depth, max.(CDX): 1 mm
• Grade: 1025
• Grooving width, nominal dimension (CW): 2 mm
• Substrate Type: WC
• Usable length: 30 mm
• Bore diameter min DMIN: 5.2 mm
• Mounting diameter: 5 mm
• All ISO application areas: P|M|N|S
