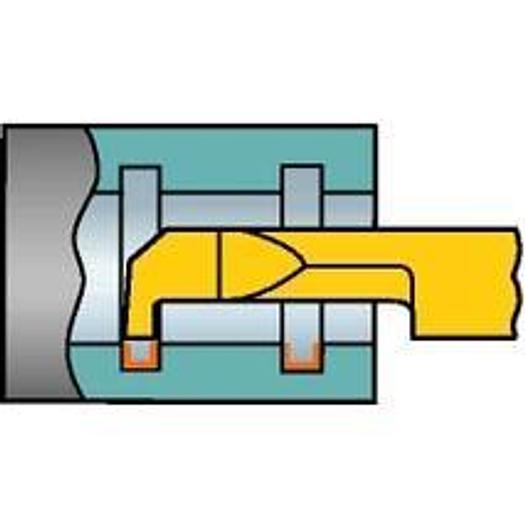

Processing type: Grooving

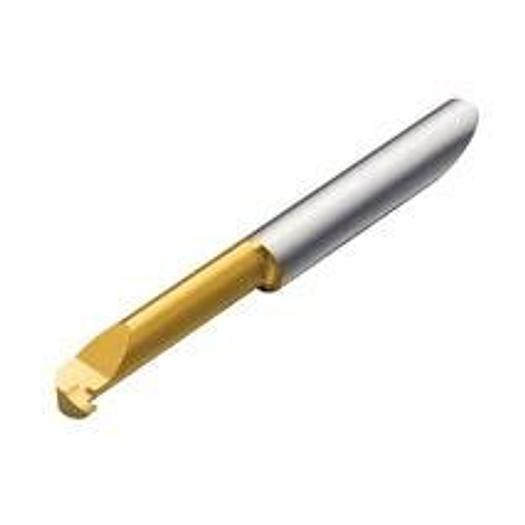

CoroTurn® XS solid carbide tool for grooving

• Adapter interface machine direction (ADINTMS): CoroTurn XS -metric: 4
• Application: L
• Application Area: TP
• Bore diameter, min.(DMIN1): 4.2 mm
• Coating Process Type: PVD
• Condition: G
• DCONMS: 4 mm
• Corner chamfer width, left (CHWL): 0.04 mm
• Corner chamfer width, right (CHWR): 0.04 mm
• Functional width (WF): 1.95 mm
• Functional length (LF): 37.25 mm
• Base body width (WB): 2.95 mm
• Manufacturer's ArtNo: CXS-04G078-4220R 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 23 mm
• Usable length (LU): 20 mm
• Upper cutting width tolerance (CWTOLU): 0.05 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 0.8 mm
• Grade: 1025
• Grooving width, nominal dimension (CW): 0.78 mm
• Substrate Type: WC
• TMC Order: 1~2~3~4
• vc max: 175~185~1875~40 m/min
• vc min: 15~190~65~70 m/min
• vc rec: 100~105~1500~25 m/min
• Material classification level 1 (TMC1): M~N~P~S
• Usable length: 20 mm
• Bore diameter min DMIN: 4.2 mm
• Mounting diameter: 4 mm
• All ISO application areas: P|M|N|S
