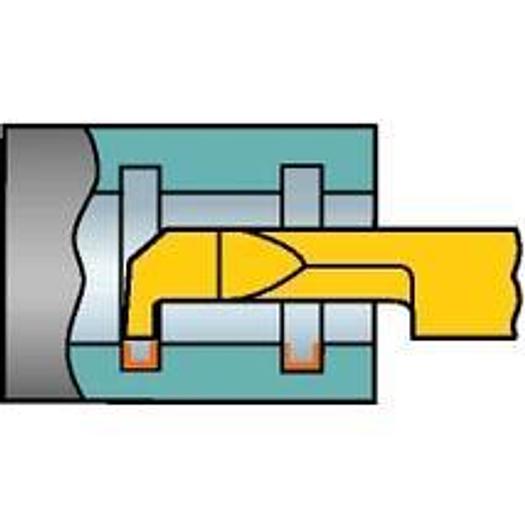

Processing type: Grooving

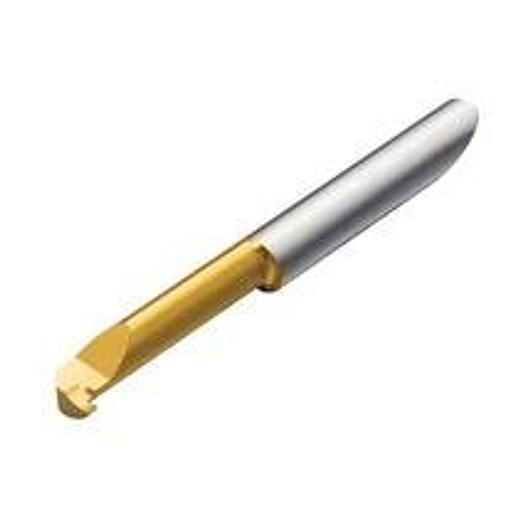

SANDVIK CoroTurn XS - grooving cutting insert

• Adapter interface machine direction (ADINTMS): CoroTurn XS -metric: 6
• Bore diameter, min.(DMIN1): 6.2 mm
• Coating Process Type: PVD
• DCONMS: 6 mm
• Corner chamfer width, left (CHWL): 0.04 mm
• Corner chamfer width, right (CHWR): 0.04 mm
• Functional width (WF): 2.95 mm
• Functional length (LF): 47.25 mm
• Base body width (WB): 3.95 mm
• Manufacturer item number: CXS-06G200-6225L 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 28 mm
• Usable length (LU): 25 mm
• Upper cutting width tolerance (CWTOLU): 0.05 mm
• Cutting direction (HAND): L
• Cutting depth, max. (CDX): 1.8 mm
• Grade: 1025
• Grooving width, nominal dimension (CW): 2 mm
• Substrate Type: WC
• Usable length: 25 mm
• Bore diameter min DMIN: 6.2 mm
• Mounting diameter: 6 mm
• All ISO application areas: P|M|N|S
