Processing type: Longitudinal turning

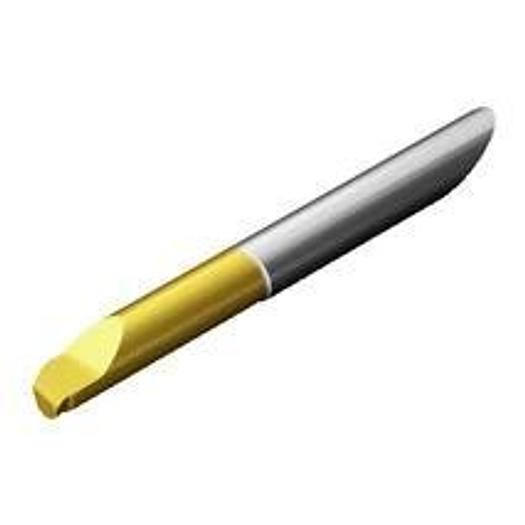

CoroTurn® XS solid carbide tool for turning

• Adapter interface machine direction (ADINTMS): CoroTurn XS -metric: 5
• Bore diameter, min.(DMIN1): 5.2 mm
• Coating Process Type: PVD
• DCONMS: 5 mm
• Corner radius (RE): 0.2 mm
• Setting angle (KAPR): 98 deg

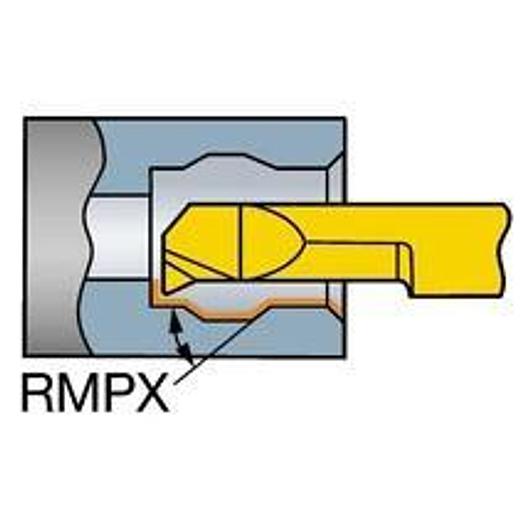

• Immersion angle, max.(RMPX): 17 deg
• Functional width (WF): 2.45 mm
• Functional length (LF): 62.25 mm
• Base body width (WB): 4.25 mm
• Main cutting edge angle (PSIR): -8 deg
• Manufacturer item number: CXS-05T098-20-5240R 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Coolant exit (CXSC): 0: no coolant exit
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 43 mm
• Usable length (LU): 40 mm
• Cutting length, max. (APMX): 0.5 mm
• Cutting direction (HAND): R
• Grade: 1025
• Substrate Type: WC
• Tool design (BMC): Steel
• Usable length: 40 mm
• Bore diameter min DMIN: 5.2 mm
• Mounting diameter: 5 mm
• All ISO application areas: P|M|N|S|O
