Processing type: Longitudinal turning

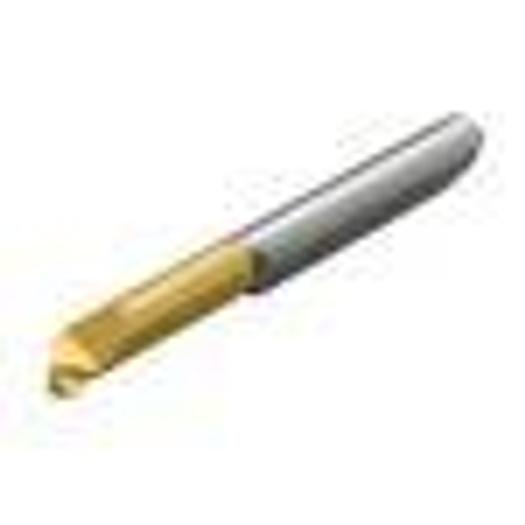

CoroTurn® XS solid carbide tool for turning

• Adapter interface machine direction (ADINTMS): CoroTurn XS -metric: 4
• ap max: 0.5 mm
• ap min: 5.0000000000000003E-2mm
• ap rec: 0.29999999999999999 mm
• Application Area: TU
• Bore diameter, min.(DMIN1): 3.2 mm
• Coating Process Type: PVD
• DCONMS: 4 mm
• Corner radius (RE): 0.15 mm
• Setting angle (KAPR): 90 deg

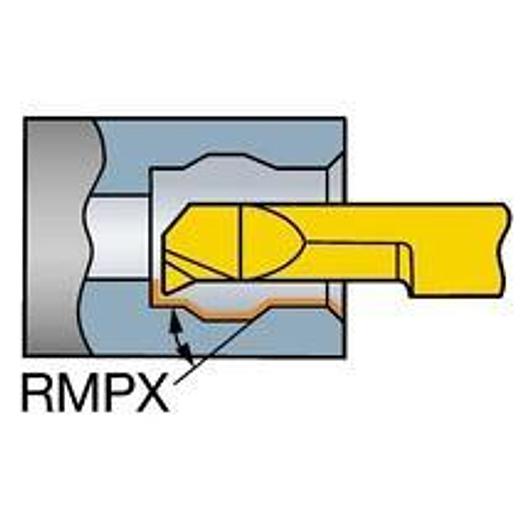

• Immersion angle, max.(RMPX): 17 deg
• fn max: 5.0000000000000003E-2mm/r
• fn min: 0.02 mm/r
• fn rec: 2.9999999999999999E-2 mm/r
• Functional width (WF): 1.45 mm
• Functional length (LF): 29.25 mm
• Base body width (WB): 2.55 mm
• Manufacturer item number: CXS-04T090-15-3212R 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Coolant exit (CXSC): 0: no coolant exit
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 15 mm
• Usable length (LU): 12 mm
• Cutting length, max. (APMX): 0.2 mm
• Cutting direction (HAND): R
• Grade: 1025
• Substrate Type: WC
• TMC Order: 1~2
• vc max: 1070~225 m/min
• vc min: 200~280 m/min
• vc rec: 225~585 m/min
• Material classification level 1 (TMC1): M~P
• Tool design (BMC): Carbide
• Usable length: 12 mm
• Bore diameter min DMIN: 3.2 mm
• Mounting diameter: 4 mm
• All ISO application areas: P|M|N|S
• Recommended variety: P|M|N|S
