Processing type: Longitudinal turning

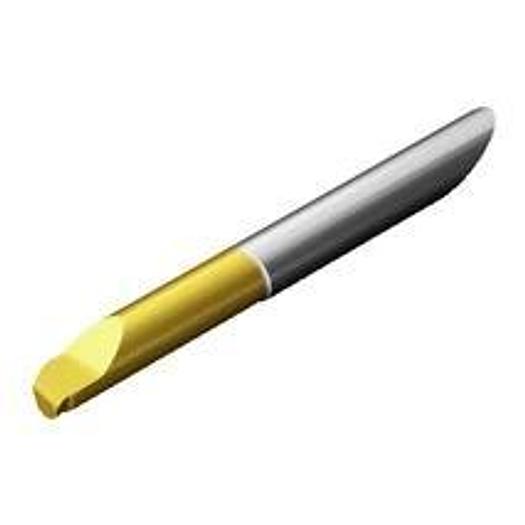

CoroTurn® XS solid carbide tool for turning

• Adapter interface machine direction (ADINTMS): CoroTurn XS -metric: 6
• Bore diameter, min.(DMIN1): 6.2 mm
• Coating Process Type: PVD
• DCONMS: 6 mm
• Corner radius (RE): 0.05 mm
• Setting angle (KAPR): 98 deg

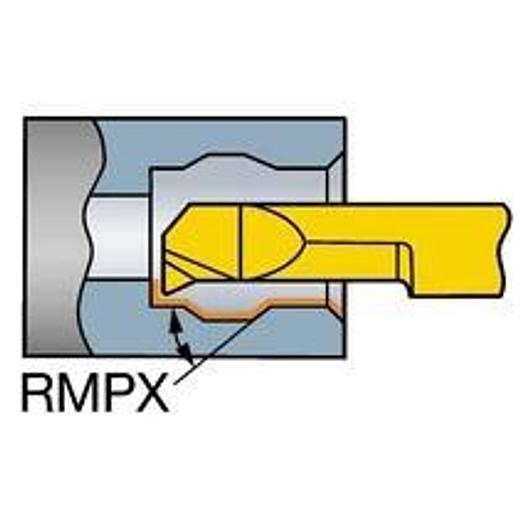

• Immersion angle, max.(RMPX): 17 deg
• Functional width (WF): 2.95 mm
• Functional length (LF): 42.25 mm
• Base body width (WB): 5.25 mm
• Main cutting edge angle (PSIR): -8 deg
• Manufacturer item number: CXS-06T098-05-6220R 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Coolant exit (CXSC): 0: no coolant exit
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 23 mm
• Usable length (LU): 20 mm
• Cutting length, max. (APMX): 0.5 mm
• Cutting direction (HAND): R
• Grade: 1025
• Substrate Type: WC
• Tool design (BMC): Steel
• Bore diameter min DMIN: 6.2 mm
• Mounting diameter: 6 mm
• Usable length: 20 mm
• All ISO application areas: P|M|N|S|O
