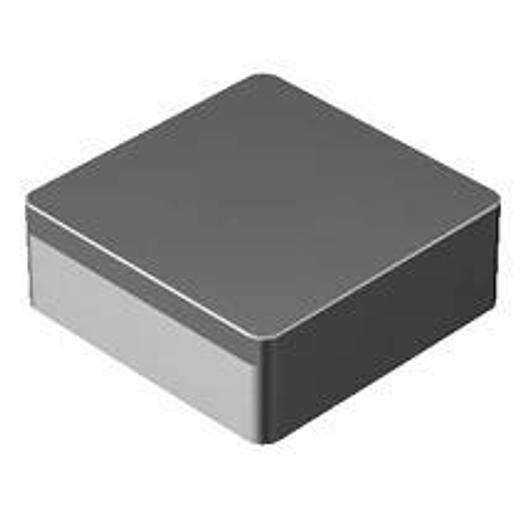

CBN plates with negative basic shape

T-Max® insert for turning

• ap max: 3.6000000000000001 mm
• ap min: 0.10000000000000001mm
• ap rec: 1.2 mm
• Application Area: TU
• Corner radius (RE): 1.1906 mm
• Inscribed Circle (IC): 12.7 mm
• fn max: 0.37 mm/r
• fn min: 5.0000000000000003E-2 mm/r
• fn rec: 0.14000000000000001 mm/r
• Manufacturer's ArtNo: SNGN120412FD CB50
• Manufacturer: SANDVIK COROMANT
• IC Code: 18200
• ISO Cutting Tool Material: BH
• Life Cycle Status (LCS): 20
• Cutting length, limited (LE): 11.5 mm
• Cutting edge height (S): 4.7625 mm
• Cutting insert shape (SC): S
• Cutting insert size and shape (CUTINT_SIZESHAPE): SN1204
• Cutting direction (HAND): N
• Grade: CB50
• Chip breaker, manufacturer designation (CBMD): FD
• Substrate Type: CBN
• TMC Order: 1
• vc max: 145 m/min
• vc min: 100 m/min
• vc rec: 140 m/min
• Material classification level 1 (TMC1): H
• Corner radius R: 1.1906 mm
• Grade: CB50
• All ISO application areas: K|H
