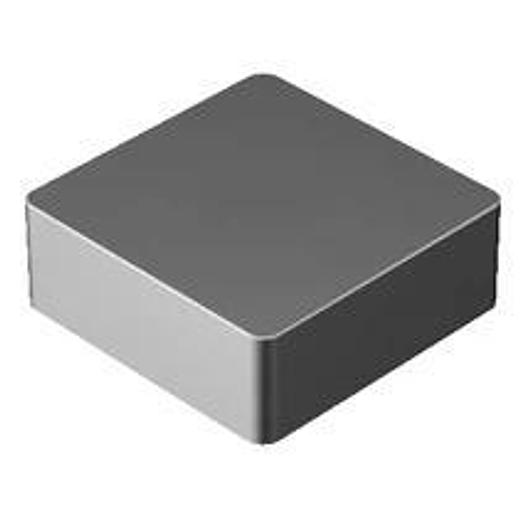

CBN plates with negative basic shape

T-Max® insert for turning

• ap max: 4 mm
• ap min: 0.5 mm
• ap rec: 2 mm
• Application Area: TU
• Corner radius (RE): 1.1906 mm
• Inscribed circle (IC): 9,525 mm
• fn max: 0.82999999999999996 mm/r
• fn min: 0.10000000000000001 mm/r
• fn rec: 0.35999999999999999 mm/r
• Manufacturer item number: SNGN090312S02520M 7925
• Manufacturer: SANDVIK COROMANT
• IC Code: 18200
• ISO Cutting Tool Material: BH
• Life Cycle Status (LCS): 20
• Cutting length, limited (LE): 8,325 mm
• Cutting edge height (S): 3.175 mm
• Cutting insert shape (SC): S
• Cutting insert size and shape (CUTINT_SIZESHAPE): SN0903
• Cutting direction (HAND): N
• Grade: 7925
• Chipping face width (BN): 0.25 mm
• Chipping face chamfer angle (GB): 20 deg
• Substrate Type: CBN
• TMC Order: 1
• vc max: 1150 m/min
• vc min: 600 m/min
• vc rec: 870 m/min
• Material classification level 1 (TMC1): K
• Corner radius R: 1.1906 mm
• Grade: 7925
• All ISO application areas: K|H
