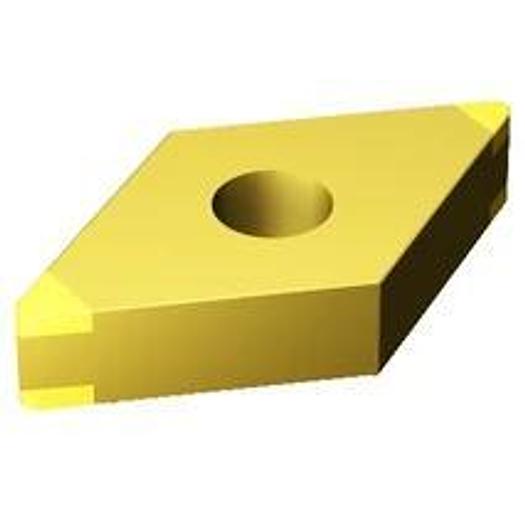

CBN plates with negative basic shape

T-Max® P insert for turning

• ap max: 0.59999999999999998mm
• ap min: 7.0000000000000007E-2mm
• ap rec: 0.20000000000000001mm
• Application Area: TU
• Coating Process Type: PVD
• Corner radius (RE): 0.8 mm
• Inscribed Circle (IC): 12.7 mm
• fn max: 0.25 mm/r
• fn min: 5.0000000000000003E-2 mm/r
• fn rec: 0.14999999999999999 mm/r
• Manufacturer item number: DNGA150408S01525H 7105
• Manufacturer: SANDVIK COROMANT
• IC Code: 18200
• ISO Cutting Tool Material: BC
• Life Cycle Status (LCS): 20
• Cutting length, limited (LE): 2.5 mm
• Cutting edge height (S): 4.7625 mm
• Cutting insert shape (SC): D
• Cutting insert size and shape (CUTINT_SIZESHAPE): DN1504
• Cutting direction (HAND): N
• Grade: 7105
• Chipping face width (BN): 0.15 mm
• Chipping face chamfer angle (GB): 25 deg
• Substrate Type: CBN
• TMC Order: 1
• vc max: 280 m/min
• vc min: 180 m/min
• vc rec: 215 m/min
• Material classification level 1 (TMC1): H
• Corner radius R: 0.8 mm
• Cutting length limited L: 2.5
• Grade: 7105
• Cutting edge height: 4.7625 mm
• All ISO application areas: H
