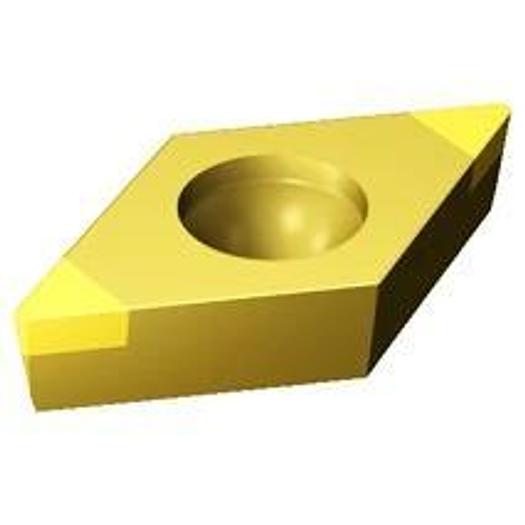

CBN plates with positive basic shape

CoroTurn® 107 turning insert

• ap max: 0.20000000000000001mm
• ap min: 7.0000000000000007E-2mm
• ap rec: 0.10000000000000001mm
• Application Area: TU
• Coating Process Type: PVD
• Corner radius (RE): 0.4 mm
• Inscribed circle (IC): 6.35 mm
• Setting angle, main cutting edge (KRINS): 93 deg
• fn max: 0.20000000000000001mm/r
• fn min: 5.0000000000000003E-2 mm/r
• fn rec: 0.10000000000000001 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer item number: DCGW070204S01020F 7115
• Manufacturer: SANDVIK COROMANT
• IC Code: 18200
• ISO Cutting Tool Material: BC
• Life Cycle Status (LCS): 20
• Cutting length, limited (LE): 2.5 mm
• Cutting edge height (S): 2.38125 mm
• Cutting insert shape (SC): D
• Cutting insert size and shape (CUTINT_SIZESHAPE): DC0702
• Cutting direction (HAND): N
• Grade: 7115
• Chipping face width (BN): 0.1 mm
• Chipping face chamfer angle (GB): 20 deg
• Substrate Type: CBN
• TMC Order: 1
• vc max: 250 m/min
• vc min: 175 m/min
• vc rec: 215 m/min
• Material classification level 1 (TMC1): H
• Corner radius R: 0.4 mm
• Cutting length limited L: 2.5
• Grade: 7115
• Cutting edge height: 2.38125 mm
• All ISO application areas: H
