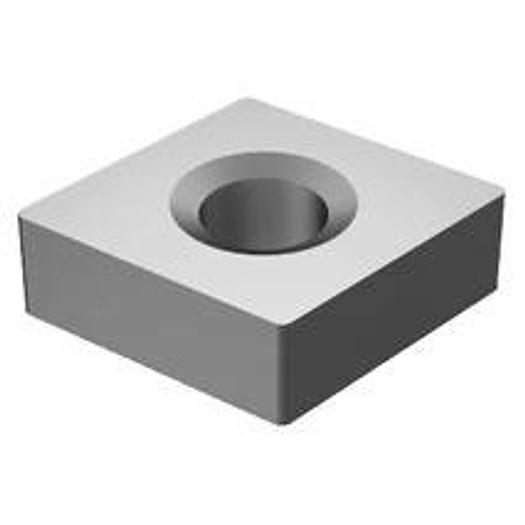

CBN plates with negative basic shape

CBN plates with negative basic shape

$150 (USD)

Location:Germany

Available quantity:99

orCall +1 (305) 951 -7825

Description

T-Max® P insert for turning


T-Max® P insert for turning

Technical characteristics:

  • ap max: 0.40000000000000002mm
  • ap min: 7.0000000000000007E-2mm
  • ap rec: 0.20000000000000001mm
  • Application Area: TU
  • Corner radius (RE): 0.7938 mm
  • Inscribed Circle (IC): 12.7 mm
  • fn max: 0.25 mm/r
  • fn min: 5.0000000000000003E-2 mm/r
  • fn rec: 0.14999999999999999 mm/r
  • Manufacturer item number: CNMA120408S01020E CB20
  • Manufacturer: SANDVIK COROMANT
  • IC Code: 18200
  • ISO Cutting Tool Material: BL
  • Life Cycle Status (LCS): 20
  • Cutting length, limited (LE): 2.8 mm
  • Cutting edge height (S): 4.7625 mm
  • Cutting insert shape (SC): C
  • Cutting insert size and shape (CUTINT_SIZESHAPE): CN1204
  • Cutting direction (HAND): N
  • Grade: CB20
  • Chipping face width (BN): 0.1 mm
  • Chipping face chamfer angle (GB): 20 deg
  • Substrate Type: CBN
  • TMC Order: 1
  • vc max: 185 m/min
  • vc min: 145 m/min
  • vc rec: 165 m/min
  • Material classification level 1 (TMC1): H
  • Corner radius R: 0.7938 mm
  • Cutting length limited L: 2.8
  • Grade: CB20
  • Cutting edge height: 4.7625 mm
  • All ISO application areas: K|H


Specifications

ManufacturerSANDVIK COROMANT
ModelCNMA120408S01020ECB20
Year2024
ConditionNew
Serial Number520 CNMA 12 04 08S01020ECB20
Stock Number.
