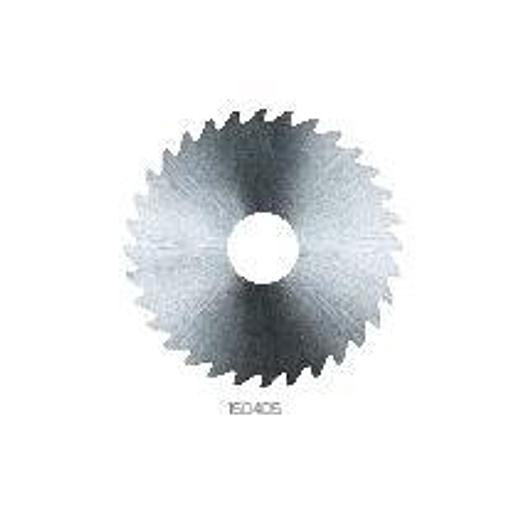

150400 PREMUS, VHM fine-toothed

PREMUS circular saw blade, solid carbide fine-toothed

Ground from solid carbide blank.

Use:

For slotting and sawing work as well as milling with the highest precision and surface quality. The use of solid carbide circular saw blades can increase the cutting speed by up to 3-5 times and the service life by up to 10-20 times. The basic requirements for this are stable and vibration-free machines, the precise and play-free bearing of the work spindle with high concentricity accuracy and the compact clamping of the workpiece and device.

Technical characteristics:

• [A1] Cutting diameter mm: 100
• [B11] Cutting width, min. mm: 1.00
• [C3] Mounting diameter, machine side mm: 22
• [F21] Number of effective cutting edges, circumferential: 128
• DIN standard: DIN 1837 A
• Material: solid carbide
• Back rake angle °: 5
• Toothing: fine
