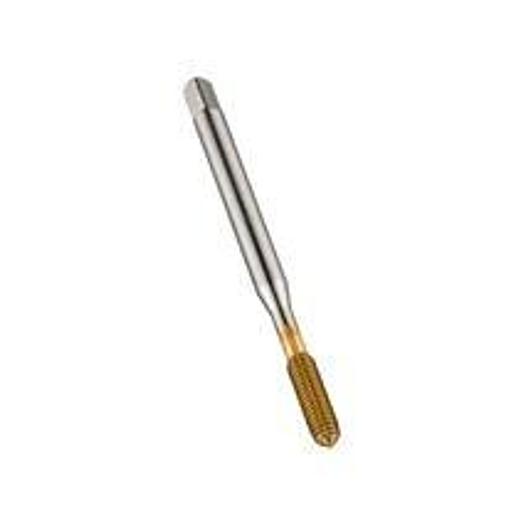

HSS-E thread former ISO TiN DIN 2174 Form C 3.5xD
HSS-E thread former ISO TiN DIN 2174 Form C 3.5xD
$105 (USD)
Location:Germany
Available quantity:99
orCall +1 (305) 951 -7825
Description
- Applications_ThreadingBlindHole_FLAG: 1
- Applications_ThreadingThroughHole_FLAG: 1
- Output Diameter - Metric (PHD): 7.4 mm
- Basic standard group: DIN 2174
- Coating: Titanium nitride coating
- Coating properties: 1
- Coating part: PVD

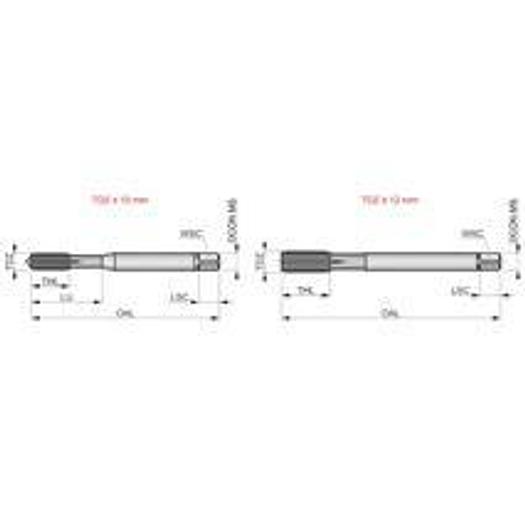

- Insert length - Metric (LU): 35 mm
- Clamping length - Metric (LSC): 9 mm
- Overall Length - Metric (OAL): 90 mm
- Thread cutting form: C 2 - 3.5
- Thread form: M - thread form, metric standard thread
- Thread size (TDZ): 8
- Thread Length - Metric (THL): 18 mm
- Thread Pitch - Metric (TP): 1.25 mm
- Thread tolerance class (TCTR): 6HX
- Main use area: threading
- Brand code: DOR
- Brand name: Dormer
- Material Code (BMC): HSS-E
- Measurement Standard Product: Metric
- Net Weight - Grams: 35.6 G
- Groove geometry: Geometry with oil grooves (thread forms)
- Usable length (ULDR): 3.5 XD
- Surface color: Gold
- Shaft: Cylindrical shaft with square
- Number of cutting edges: 5
- Cutting direction: Right
- Clamping width - Metric (WSC): 6.2 mm
- Clamping diameter - Metric (DCON MS): 8 mm
Specifications
| Manufacturer | DORMER PRAMET |
| Model | E294M8 |
| Year | 2024 |
| Condition | New |
| Serial Number | 550 E294 M8 |
| Stock Number | . |
