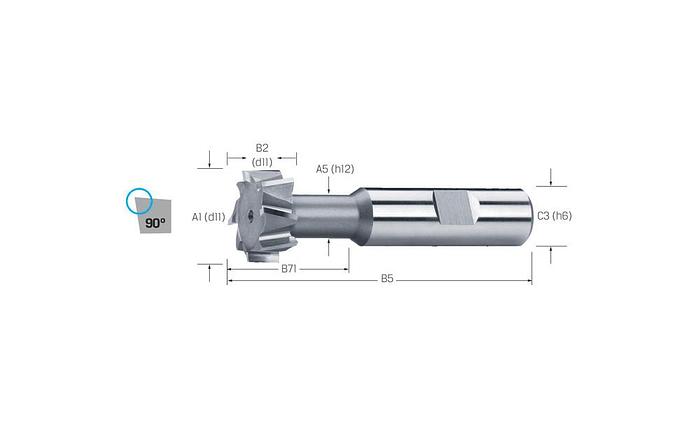

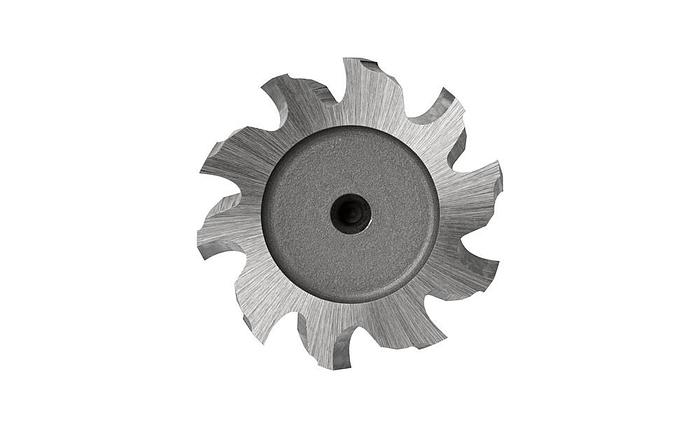

HSS slot cutter cyl. Suit weight DIN 1835 D/B DIN850 12°
HSS slot cutter cyl. Suit weight DIN 1835 D/B DIN850 12°
$280 (USD)
Location:Germany
Available quantity:99
orCall +1 (305) 951 -7825
Description
- Basic standard group: DIN 850
- Coating: Uncoated
- Milling profile: N - Universal milling cutter for low to high resistance materials
- Overall length - Metric (OAL): 63 mm
- Main area of use: Milling
- Brand code: DOR
- Brand Name: Dormer
- Material Code (BMC): HSS-E
- Maximum cutting depth - Metric (APMX): 4 mm
- Measurement standard Product: Metric
- Net Weight - Grams: 46.3 G
- Surface treatment: Original surface
- Surface color: Bright Silver
- Peripheral effective cutting edge count: 10
- Radial chip angle (GAMF): 10 °
- Shank: DIN 1835 – Weldon shank (B) or threaded shaft (D)
- Shear diameter - Metric (DC): 19.5 mm
- Shear diameter tolerance class (TCDC):h11
- Number of cutting edges: 10
- Cutting width - Metric (CW): 0 mm
- Clamping diameter - Metric (DCON MS): 10 mm
- Clamping diameter machine tolerance: h6
- Spiral angle: 10 °
Specifications
| Manufacturer | PRAMET |
| Model | C82219.5X4.0 |
| Year | 2024 |
| Condition | New |
| Serial Number | 550C822 19.5X4.0 |
| Stock Number | . |
