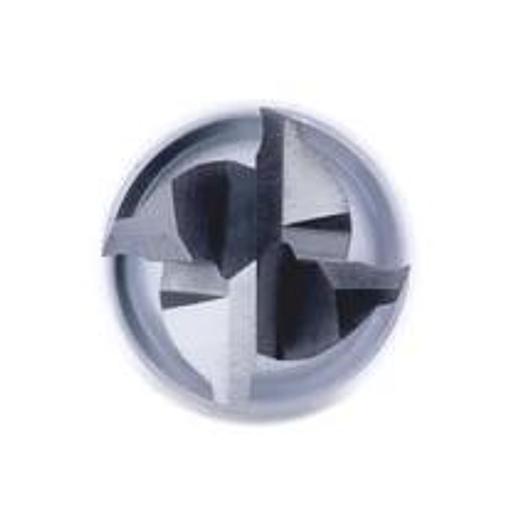

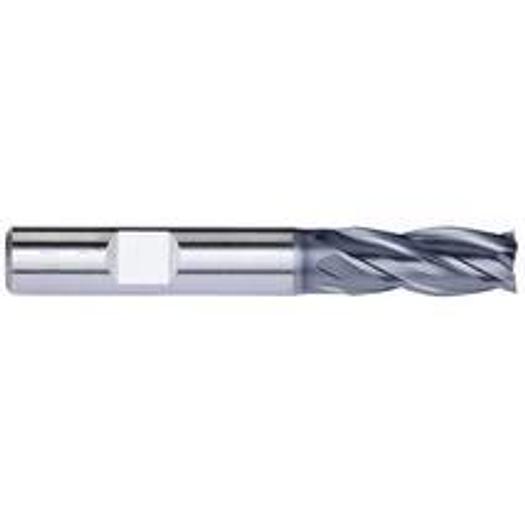

Name: HSS-E-PM end mill Weldon DIN 844K N 30° TiCN 4-6 cut.
Brand: DORMER PRAMET
SKU: .
Price: 205.0 USD
Availability: InStock

orCall +1 (305) 951 -7825

Basic standard group: DIN 844 K
Coating: Titanium carbon nitride coating
Coating properties: 1
Coating part: PVD

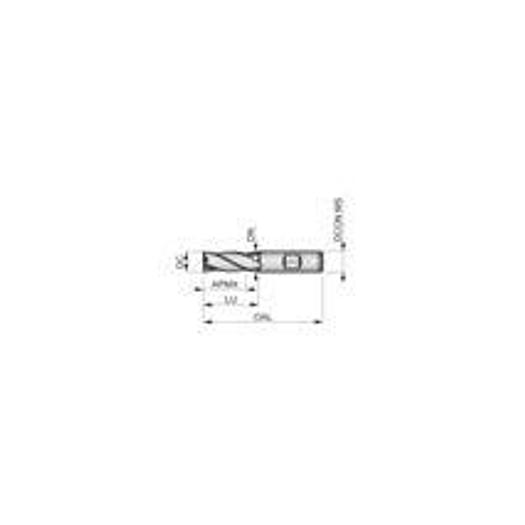

Insert length - Metric (LU): 53.5 mm
Milling profile: N - Universal milling cutter for low to high resistance materials
Overall Length - Metric (OAL): 104 mm
Neck Diameter - Metric (DN): 19.5 mm
Main use area: Milling
Brand code: DOR
Brand name: Dormer
Material Code (BMC): HSS-E-PM
Maximum cutting depth - Metric (APMX): 38 mm
Medium machining – good surface quality: Possible application
Measurement Standard Product: Metric
Net Weight - Grams: 218.6 G
Surface color: Purple
Peripheral effective number of cutting edges: 4
Radial rake angle (GAMF): 12°
Shank: DIN 1835B – Weldon shank
Cutting diameter - Metric (DC): 20 mm
Cutting diameter tolerance class (TCDC): k10
Number of cutting edges: 4
Cutting length: Cutting length, short
Clamping diameter - Metric (DCON MS): 20 mm
Clamping diameter tolerance machine: h6
Spiral angle: 30 °

HSS-E-PM end mill Weldon DIN 844K N 30° TiCN 4-6 cut.
