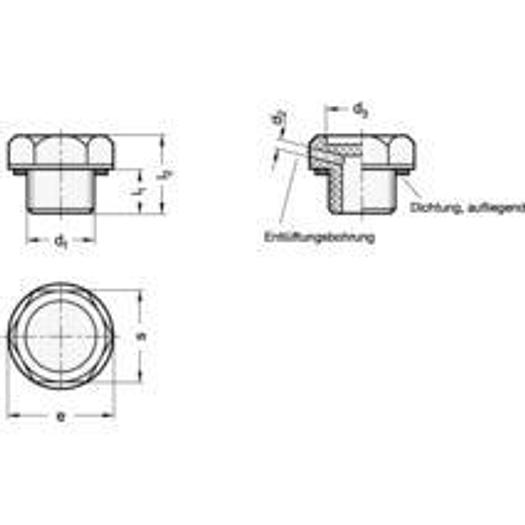

Screw plugs, plastic, with flat seal

Self-adhesive, matt anodized aluminum plates (0.3 mm thick) in sizes d3 = 15 to 31 are available to match the GN 745 screw plugs.

Technical characteristics:

• d2 vent hole: 2
• d3: 15
• e ˜: 22
• Vent hole: 1 - without vent hole
• Fine thread d1: M 12 x 1.5
• Weight: 0.004 kg
• l1: 9
• l2: 16
• s: 19
• Material: KT - plastic
