BALL TRANSMISSION HOUSING, FORM:C STEEL, SOLID DESIGN, COMP:STAINLESS STEEL

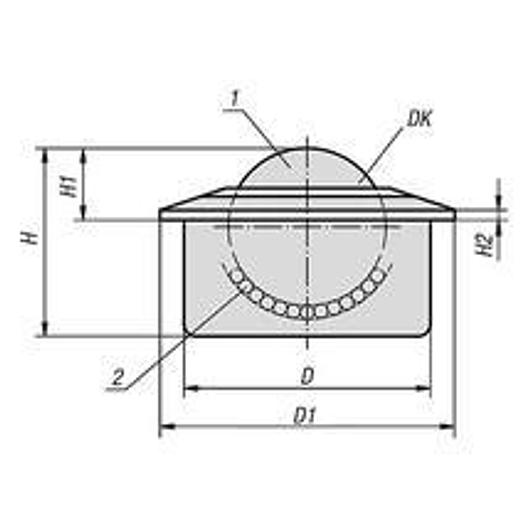

Material: Galvanized steel. Order example: K0763.160 Note: Ball transfer units with solid sheet steel remain functional even under heavy impact loads and under extreme conditions. They have a felt seal that protects against dirt. Drawing note: 1) Load ball 2) Support ball Form B: Cover and housing galvanized, balls made of steel Form C: Cover and housing galvanized, balls made of stainless steel

Technical features:

• Version 1: Housing
• Version 2: Solid version
• Fastening type: press-in
• Name: Ball transfer unit
• D=Diameter: 100±0.1
• D1=Outer diameter: 117
• DK: 57.1
• Shape: C
• Weight in kg (ERP): 3.6610
• H=Height: 77.5
• H1=Height: 29.5
• H2: 5
• Material base body: steel
• Material Component: Stainless steel
• Surface base body: galvanized
• RoHS: true
• Load capacity C (N): 10000
• Country of origin: GB
• Customs tariff number: 83022000
