SWIVEL CASTOR WITH LOCKING SYSTEM STOP-TOP POLYURETHANE, COMP:STEEL, D=200, B=50

Material: Housing made of sheet steel. Wheel body made of die-cast aluminum, with Extrathane tread. Design: Pressed housing. Castor housing with double ball bearing in the swivel head and ball protection. Wheels with precision ball bearings. Note: The wheels are corrosion-resistant and have low rolling resistance. Wheel axle bolted. From a diameter of 125 mm, the wheels have spokes.

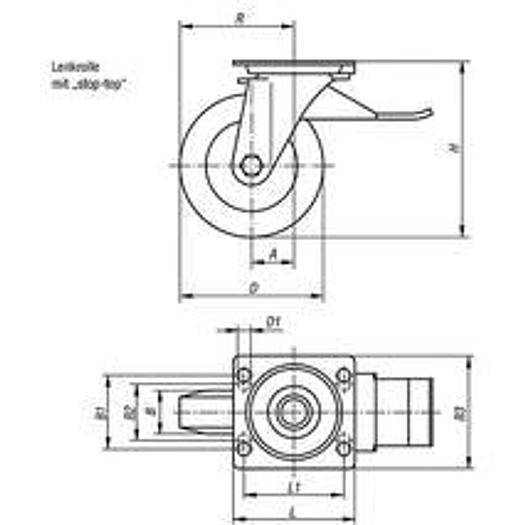

Technical features:

• A: 70
• Version 1: with stop-top locking system
• B=Roll width: 50
• B1: 80
• B2: 75
• B3: 110
• Mounting type: screw plate
• Name: Swivel castor
• D=Roll diameter: 200
• D1: 11
• Weight in kg (ERP): 3.8000
• H=Total height: 245
• L: 140
• L1: 105
• Material base body: polyurethane
• Material Component: Steel
• R: 170
• Wheel bearing: ball bearing
• RoHS: true
• Load capacity kg: 800
• Country of origin: DE
• Region of origin: 08
• Customs tariff number: 83022000
