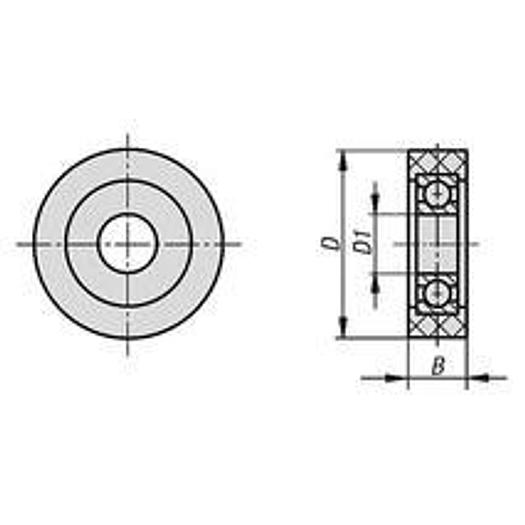

GUIDE ROLLER WITHOUT LOCKING SYSTEM POLYURETHANE, WITHOUT HOUSING, D=50, B=15

Material: Tread Extrathane hardness 92° Shore A, light brown or Polyamide 6 hardness 70° Shore D, white. Order example: nlm 95057-05015 Note: The tread is cast firmly onto a ball bearing. Tread Extrathane: low-noise running, low rolling resistance, elastic, gentle on floors, very abrasion-resistant, high cut and tear resistance, non-marking, non-discoloring on contact. Tread Polyamide 6: break-proof, very low rolling resistance, easy running on smooth floors, very abrasion-resistant. Area of ​​application: conveyor belts, gates, etc. Other sizes on request.

Technical features:

• Version 1: without locking system
• Version 2: without housing
• B=Roll width: 15
• B1: 9
• Title: Leadership role
• D=Roll diameter: 50
• D1: 10
• Weight in kg (ERP): 0.0551
• Ball bearing : 6200 2RS
• Material base body: polyurethane
• Tread material: Extrathane
• Wheel bearing: ball bearing
• RoHS: true
• Load capacity kg: 60
• Country of origin: FR
• Region of origin: 08
