SWIVEL CASTOR WITH LOCKING SYSTEM STOP-TOP POLYURETHANE, COMP:STEEL, D=125, B=50

Material: Housing made of strong sheet steel. Wheels with welded steel wheel body and Extrathane tread. Design: Pressed housing. Castor housing with heavy fork and base plate, bolted and secured with a very stable center bolt. The swivel head is additionally reinforced with specially shaped and hardened bearing shells. Note: These castors and wheels are particularly resistant to impacts and shocks. The wheels are abrasion-resistant, elastic and quiet. Wheel axle bolted.

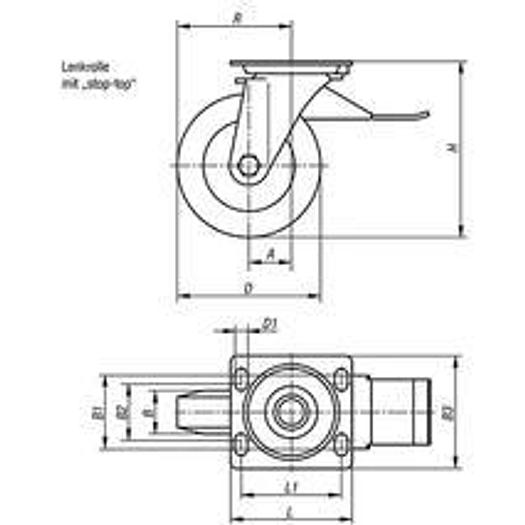

Technical features:

• A: 55
• Version 1: with stop-top locking system
• B=Roll width: 50
• B1: 80
• B2: 75
• B3: 110
• Mounting type: screw plate
• Name: Swivel castor
• D=Roll diameter: 125
• D1: 11
• Weight in kg (ERP): 4.1850
• H=Total height: 170
• L: 140
• L1: 105
• Material base body: polyurethane
• Material Component: Steel
• R: 117.5
• Wheel bearing: ball bearing
• RoHS: true
• Load capacity kg: 500
• Country of origin: DE
• Region of origin: 08
• Customs tariff number: 83022000
