Load hook

The GN 5862 load hooks are mounted on ball bearings for rotation. The movable hook allows them to take loads in any permitted direction of pull. The nominal load capacity specified in the table is clearly visible on the bearing housing. It applies to the most unfavorable case of the load types listed opposite. GN 5862 load hooks comply with the Machinery Directive 2006/42/EC and are BG-tested. The integrated RFID transponder is used to clearly mark and identify the lifting gear, e.g. during the prescribed regular inspection.

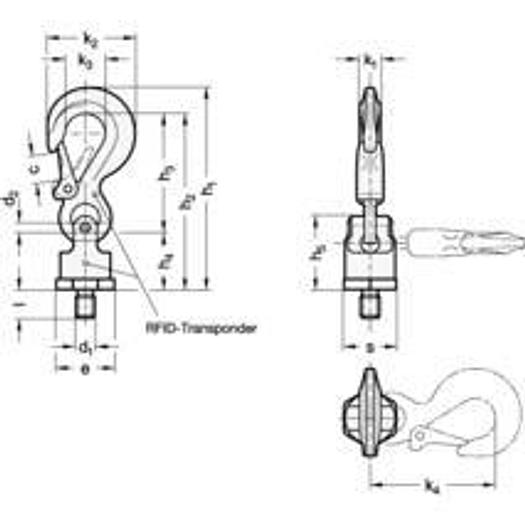

Technical features:

• Tightening torque in Nm: 30
• c: 25
• e: 46
• Weight: 0.820 kg
• Thread d1: M 16
• Thread d2: 7.4
• h1: 166
• h2: 146
• h3: 97
• h4: 49
• h5: 63
• k1: 16
• k2: 73
• k3: 32
• k4: 105
• Length l: 24
• Nominal load capacity in t: 1.50
• p: 41
• Material: ST - steel
