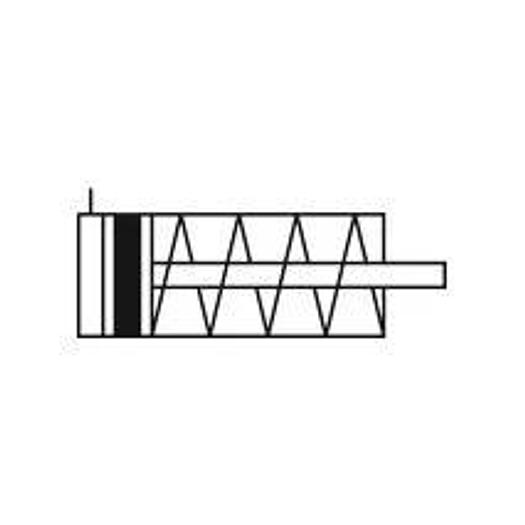

12.EM.16010, short stroke cylinder »ASQ« single-acting, piston Ø 16, stroke 10, M5x0.8

12.EM.16010, short stroke cylinder »ASQ« single-acting, piston Ø 16, stroke 10, M5x0.8

$80 (USD)

Location:Germany

Available quantity:99

orCall +1 (305) 951 -7825

Description

Short-stroke cylinder »ASQ« single-acting, magnet, internal thread, piston diameter 16, stroke 10, connection M5x0.8, working pressure 2-10 bar, temperature -20°C to 70°CSpecially designed for use in confined spaces.Version with magnetic piston. Short-stroke cylinder in two different versions:»ACQ« series, double-acting, diameter 12 - 100»ASQ« series, single-acting, diameter 12 - 63Suitable for filtered and unoiled or oiled compressed air.When using oiled compressed air, ensure continuous oiling.

Show All

Specifications

ManufacturerRiegler
Model12.EM.16010
Year2024
ConditionNew
Serial Number846 115171
Accesories235.102, sensor »CS1« short-stroke cyl. »ACQ«/»ASQ« HALL sensor 3-wire, NO NPN
Accesories235.105, Sensor »CS1« short-stroke cylinder »ACQ«/»ASQ«, HALL sensor 3-wire
Accesories437.501, foot mounting »LB« for short stroke cylinder »ACQ«/»ASQ«, piston Ø 16
Accesories437.521, swivel fork mounting »CB« short stroke cylinder »ACQ«/»ASQ«, piston Ø 16
Accesories235.103, sensor »CS1« short-stroke cyl. »ACQ«/»ASQ«, HALL sensor 3-wire, 3m
Accesories437.511, flange mounting »FA« for short stroke cylinder »ACQ«/»ASQ«, piston Ø 16
Accesories235.101, sensor »CS1« short-stroke cylinder »ACQ«/»ASQ«, REED sensor 2-wire
Accesories235.104, sensor »CS1« short-stroke cyl. »ACQ«/»ASQ« HALL sensor 3-wire, NO PNP
