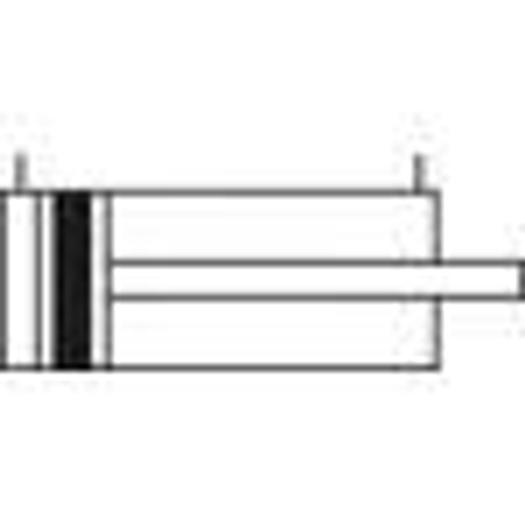

Short-stroke cylinder »ACQ« double-acting, piston diameter Ø 80 mm, stroke 60 mm, G 3/8"

Short-stroke cylinder »ACQ« double-acting, piston diameter Ø 80 mm, stroke 60 mm, G 3/8"

$160 (USD)

Location:Germany

Available quantity:99

orCall +1 (305) 951 -7825

Description

Short-stroke cylinder »ACQ«, double-acting, with magnet, internal thread, piston Ø 80 mm, stroke 60 mm, connection G 3/8, working pressure 1-10 bar, temperature -20°C to 70°C.

Specifically designed for applications in confined spaces. Version with magnetic piston. Short-stroke cylinder available in two different versions:

  • Series »ACQ«, double-acting, Ø 12 – 100 mm
  • Series »ASQ«, single-acting, Ø 12 - 63 mm

Suitable for filtered and unlubricated or lubricated compressed air.

When using lubricated compressed air, ensure continuous lubrication.

Show All

Specifications

ManufacturerRiegler
Model12.DMI.80060
Year2024
ConditionNew
Serial Number846115162
Accesories235.102, Sensor »CS1« Short-stroke cylinder »ACQ«/»ASQ« HALL sensor, 3-wire, NO (normally open), NPN
Accesories437.508, Foot mounting »LB« for short-stroke cylinder »ACQ«/»ASQ«, piston Ø 80
Accesories235.105, Sensor »CS1« for short-stroke cylinder »ACQ«/»ASQ«, HALL sensor, 3-wire
Accesories437.518, Flange mounting »FA« for short-stroke cylinder »ACQ«/»ASQ«, piston Ø 80
Accesories235.103, Sensor »CS1« for short-stroke cylinder »ACQ«/»ASQ«, HALL sensor, 3-wire, 3m
Accesories437.528, Swivel fork mounting »CB« for short-stroke cylinder »ACQ«/»ASQ«, piston Ø 80
Accesories437.528, Swivel fork mounting »CB« for short-stroke cylinder »ACQ«/»ASQ«, piston Ø 80
Accesories235.104, Sensor »CS1« for short-stroke cylinder »ACQ«/»ASQ«, HALL sensor, 3-wire, NO (normally open), PNP
